Description:

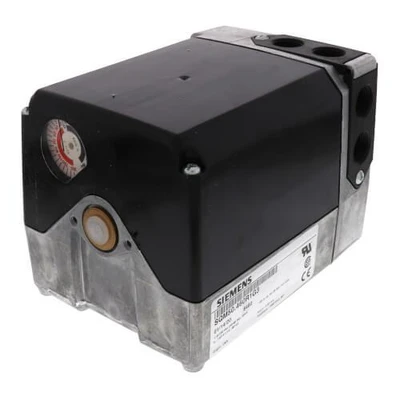

Siemens SQM5 Reversing Actuator
SQ5M Series reversing actuators are used for the position of flow control valves, butterfly valves, dampers, or any application requiring rotary motion.  The SQM5 actuators accommodate control input signals of 4 to 20mA, 0 to 135, 0-10 VDC or 0-20 mA position proportional and floating control.  SQM5 actuators are available with up to six internal, easily adjustable switches. A selection of exchangeable circuit boards provide a variety of functions including auto/manual selector switch, manual forward/reverse toggle switch, zero and span adjustment, parallel or master/slave operation, split range control, input signal override, and selectable electronic linearization. The SQM5 is engineered for precision.  It is particularly well suited for applications requiring a high degree of modulating accuracy and repeatability. The SQM5 actuator may be mounted in any position.  A selection of mounting brackets and shafts provides installation felxibility and allows for the simple replacement of most compettitve actuators.
Features:
Two limit switches, plus up to four internal auxiliary switches
Fully closed "economy position" switch
Drive shaft and cam drum disengagement clutches
Auto/manual switch, manual control forward/reverse toggle switch
UL, CSA approved 24 and 110 Vac versions
CE approved 220 Vac versions
Field reversible clockwise or counter clockwise operation
Various torque ratings and running times available
Selection of field exchangeable single-ended and dual-ended shafts
Mounting brackets to replace competitive actuators
