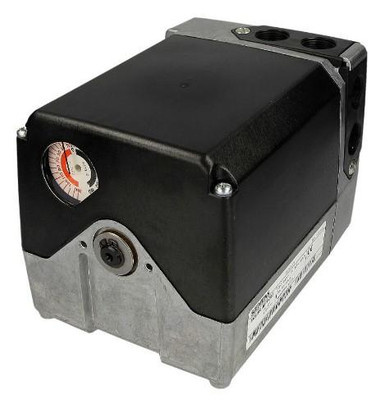

Siemens Combustion SQM50.461R1Z3 Reversing Actuator Damper Motor 110V 140lb-in Torque
Siemens
(No reviews yet)
Write a Review
Write a Review
Siemens
Siemens Combustion SQM50.461R1Z3 Reversing Actuator Damper Motor 110V 140lb-in Torque
$2,409.60
Usually Ships In 1-2 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- SQM50.461R1Z3
- Weight:
- 8.72 (Lbs.)
- Ships From:
- Illinois
- Ships By:
- Free Ground, Or Choose Expedited Shipping At Checkout
Description:
SQ5M...reversing actuators are used for the position of flow control valves, butterfly valves, dampers, or any application requiring rotary motion. Â The SQM5 actuators accommodate control input signals of 4 to 20mA, 0 to 135, 0-10 VDC or 0-20 mA position proportional and floating control. Â SQM5 actuators are available with up to six internal, easily adjustable switches. A selection of exchangeable circuit boards provide a variety of functions including auto/manual selector switch, manual forward/reverse toggle switch, zero and span adjustment, parallel or master/slave operation, split range control, input signal override, and selectable electronic linearization. The SQM5 is engineered for precision. Â It is particularly well suited for applications requiring a high degree of modulating accuracy and repeatability. The SQM5 actuator may be mounted in any position. Â A selection of mounting brackets and shafts provides installation felxibility and allows for the simple replacement of most compettitve actuators.Related Units, Accessories, And OEM Replacement Parts
