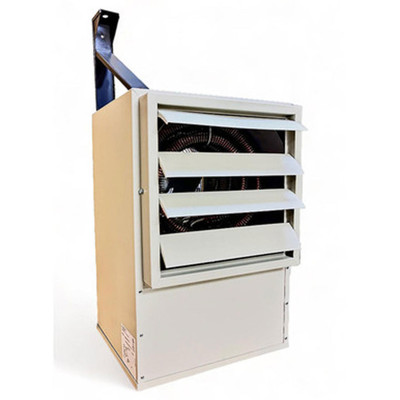

Markel P3PUHE15CA1T Horizontal Fan Forced Electric Unit Heater, With In-built Thermostat And Wall/Ceiling Bracket, 15 KW, 480V/3Ph
Markel
(No reviews yet)
Write a Review
Write a Review
Markel
Markel P3PUHE15CA1T Horizontal Fan Forced Electric Unit Heater, With In-built Thermostat And Wall/Ceiling Bracket, 15 KW, 480V/3Ph
$2,378.89
Usually Ships In 4-5 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- Markel-P3PUHE15CA1T
- UPC:
- 686334742467
- Weight:
- 54.00 (Lbs.)
- Ships By:
- Free Ground
- Ships From:
- Tennessee - Factory Direct
Description:
Markel P3PUHE15CA1T Horizontal Fan Forced Electric Unit Heater, With In-built Thermostat And Wall/Ceiling Bracket Features:
- Catalog Number: 7424602.
- Model Number: P3PUHE15CA1T.
- Agency Rating: ETL-US.
- Voltage: 480.
- Amp: 18.6.
- KW: 15.
- Phase: 3.
- Control Voltage: 24.
- BTU: 51200.
- CFM: 800.
- Air Throw: 45’.
- Temperature Rise: 59.
- Weight (lbs): 54.
- Model Number: P3PUHE15CA1T.
- Agency Rating: ETL-US.
- Voltage: 480.
- Amp: 18.6.
- KW: 15.
- Phase: 3.
- Control Voltage: 24.
- BTU: 51200.
- CFM: 800.
- Air Throw: 45’.
- Temperature Rise: 59.
- Weight (lbs): 54.
Additional Features
- Supplied with a single pole in-built thermostat and a wall/ceiling hanger bracket.
- Heavy gauge welded steel cabinet.
- Powder coated finish.
- Circular copper clad steel sheath element with continuously brazed steel fins.
- Automatic reset limit.
- Totally enclosed, single phase, permanently lubricated, thermally protected motor.
- Louvers are individually adjustable.
- ETL-US Listed.
- California residents see Prop 65 Warnings.
- Heavy gauge welded steel cabinet.
- Powder coated finish.
- Circular copper clad steel sheath element with continuously brazed steel fins.
- Automatic reset limit.
- Totally enclosed, single phase, permanently lubricated, thermally protected motor.
- Louvers are individually adjustable.
- ETL-US Listed.
- California residents see Prop 65 Warnings.
Additional Information
CONSTRUCTION: Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation and maintenance.
HEATING ELEMENT: Circular copper clad steel sheath element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade.
OVERHEAT PROTECTION: All units come equipped with automatic resetting type limit controls to deenergize the heater should an over-temperature situation occur.
FAN and MOTOR: Totally enclosed, single phase, permanently lubricated, thermally protected motors. Mounted with rubber insulators to minimize vibration and noise. Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.
LOUVER ASSEMBLY: Louvers are individually adjustable for directional control of air flow and the entire assembly can be repositioned in the field from down flow to up flow or left / right directional air flow.
INSTALLATION: The UHE series is supplied with a single pole in-built thermostat and a wall/ ceiling hanger bracket. UHE heater can be mounted in a vertical position only with the motor shaft from horizontal to downward at 45° off horizontal. Pre-drilled holes and installed threaded nuts provided to allow hanging by threaded rods.
