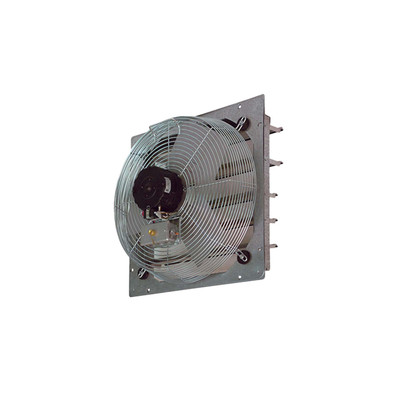

TPI CE14-DS 14 Inch Direct Drive Shutter Mounted Exhaust Fan, 3 Speed, 1/8 HP, 1520 CFM, 120V/1Ph

TPI CE14-DS 14 Inch Direct Drive Shutter Mounted Exhaust Fan, 3 Speed, 1/8 HP, 1520 CFM, 120V/1Ph

(No reviews yet) Write a Review
$441.60

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Questions? Contact us
Product ID:
TPI-CE14-DS
UPC:
686334869003
Weight:
17.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Tennessee - Factory Direct

Links To Product Literature:

TPI Ventilation, Fans And Industrial Lighting Catalog

Frequently Bought Together

Please choose options for all selected products

Description:

TPI CE14-DS 14 Inch Direct Drive Shutter Mounted Exhaust Fan Features:
- Can be installed from inside wall.
- Eliminates need for external framing and shutter.
- Pull chain switch.
- No Cord-Junction box provided for direct wiring.
- Aluminum blade.
- Steel spiral wire guards.
- Made in U.S.A. with domestic and foreign components.

SPECIFICATIONS
Catalog Number: 08690002
Model Number: CE 14-DS
Fan Style Type: Direct Drive
Blade Size: 14
Blade Material: Aluminum
Switch: Pull Chain
Speeds: 3
CFM High: 1520
CFM Med: 1400
CFM Low: 1250
Motor Rating HP: 1/8
Motor Volt: 120
RPM High: 1660
RPM Medium: 1550
RPM Low: 1370
Voltage: 120
Amp: 2
Phase: 1
Connection Type: J-Box
Color: Galvanized
Height: 17.125 Inch
Width: 17.125 Inch
Depth: 7.18 Inch
Weight (lbs): 17

MOTOR SPECIFICATIONS
- 120V, 1-Phase, totally enclosed, permanently lubricated.
- 1/8 HP motor is 3-Speed sleeve bearing permanent split capacitor.
