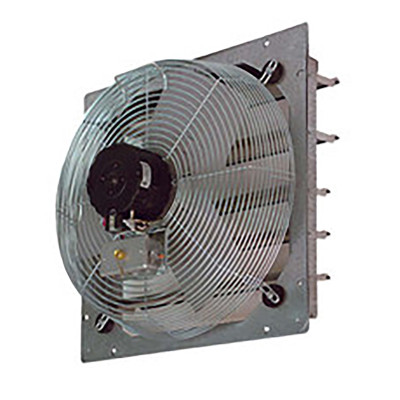

TPI CE18-DS 18 Inch Direct Drive Shutter Mounted Exhaust Fan, 3 Speed, 1/8 HP, 2300 CFM, 120V/1Ph
TPI
$502.40
Usually Ships In 2-3 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- TPI-CE18-DS
- UPC:
- 686334798631
- Weight:
- 25.00 (Lbs.)
- Ships By:
- Free Ground
- Ships From:
- Tennessee - Factory Direct
Description:
TPI CE18-DS 18 Inch Direct Drive Shutter Mounted Exhaust Fan Features:
- Can be installed from inside wall.
- Eliminates need for external framing and shutter.
- Pull chain switch.
- No Cord-Junction box provided for direct wiring.
- Aluminum blade.
- Steel spiral wire guards.
- Eliminates need for external framing and shutter.
- Pull chain switch.
- No Cord-Junction box provided for direct wiring.
- Aluminum blade.
- Steel spiral wire guards.
- Made in U.S.A. with domestic and foreign components.
SPECIFICATIONS
Catalog Number: 07986302
Model Number: CE 18-DS
Fan Style Type: Direct Drive
Blade Size: 18
Blade Material: Aluminum
Switch: Pull Chain
Speeds: 3
CFM High: 2300
CFM Med: 2100
CFM Low: 1850
Motor Rating HP: 1/8
Motor Volt: 120
RPM High: 1660
RPM Medium: 1050
RPM Low: 1370
Voltage: 120
Amp: 2.2
Phase: 1
Connection Type: J-Box
Color: Galvanized
Height: 21.125 Inch
Width: 21.125 Inch
Depth: 7.18 Inch
Weight (lbs): 25
Model Number: CE 18-DS
Fan Style Type: Direct Drive
Blade Size: 18
Blade Material: Aluminum
Switch: Pull Chain
Speeds: 3
CFM High: 2300
CFM Med: 2100
CFM Low: 1850
Motor Rating HP: 1/8
Motor Volt: 120
RPM High: 1660
RPM Medium: 1050
RPM Low: 1370
Voltage: 120
Amp: 2.2
Phase: 1
Connection Type: J-Box
Color: Galvanized
Height: 21.125 Inch
Width: 21.125 Inch
Depth: 7.18 Inch
Weight (lbs): 25
MOTOR SPECIFICATIONS
- 120V, 1-Phase, totally enclosed, permanently lubricated.
- 1/8 HP motor is 3-Speed sleeve bearing permanent split capacitor.
- 1/8 HP motor is 3-Speed sleeve bearing permanent split capacitor.
