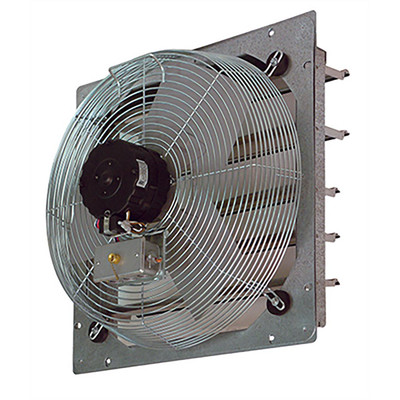

TPI CE10-DS 10 Inch Direct Drive Shutter Mounted Exhaust Fan, 3 Speed, 1/12 HP, 680 CFM, 120V/1Ph

TPI CE10-DS 10 Inch Direct Drive Shutter Mounted Exhaust Fan, 3 Speed, 1/12 HP, 680 CFM, 120V/1Ph

(No reviews yet) Write a Review
$320.34

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Questions? Contact us
Product ID:
TPI-CE10-DS
UPC:
686334868990
Weight:
11.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Tennessee - Factory Direct

Links To Product Literature:

TPI Ventilation, Fans And Industrial Lighting Catalog

Frequently Bought Together

Please choose options for all selected products

Description:

TPI CE10-DS 10 Inch Direct Drive Shutter Mounted Exhaust Fan Features:
- Can be installed from inside wall.
- Eliminates need for external framing and shutter.
- Pull chain switch.
- No Cord-Junction box provided for direct wiring.
- Aluminum blade.
- Steel spiral wire guards.
- Made in U.S.A. with domestic and foreign components.

SPECIFICATIONS
Catalog Number: 08689902
Model Number: CE 10-DS
Fan Style Type: Direct Drive
Blade Size: 10
Blade Material: Aluminum
Switch: Pull Chain
Speeds: 3
CFM High: 680
CFM Med: 540
CFM Low: 460
Motor Rating HP: 1/12
Motor Volt: 120
RPM High: 1560
RPM Medium: 1250
RPM Low: 1080
Voltage: 120
Amp: 1
Phase: 1
Connection Type: J-Box
Color: Galvanized
Height: 13.125 Inch
Width: 13.125 Inch
Depth: 5.81 Inch
Weight (lbs): 11

MOTOR SPECIFICATIONS
- 120V, 1-Phase, totally enclosed, permanently lubricated.
- 1/12 HP motor is 3-Speed sleeve bearing permanent split capacitor.
