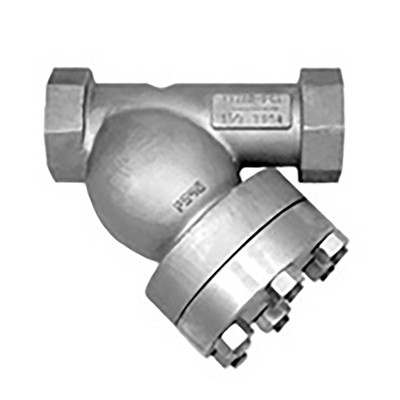

Titan Flow Control YS83S0125 1 1/4 Inch Y Strainer, Stainless Steel, ANSI Class 1500, Threaded Ends, Bolted Cover

(No reviews yet) Write a Review

Titan Flow Control

$1,148.00

Usually Ships In 1-2 Weeks

Shipping truck icon

Free ground shipping to the lower 48 states

Product ID:
Titan-Flow-Control-YS83S0125
Weight:
27.00 (Lbs.)
Ships By:
Free Ground
Ships From:
North Carolina - Direct From Titan
Titan Flow Control YS83S0125 Features:
- 1 1/4 Inch Y Strainer.
- Stainless Steel A351 Gr. CF8M.
- ANSI Class 1500.
- Thread Ends.
- Bolted Cover.
- Standard 1/16 Perforation screen.
- WOG Rating 3600 PSI at 100F.

Additional Features

Rugged High Quality Design:
Titan unit YS83 and YS84 are ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements.

Large Straining Capacity:
With its large body and sizable straining element, provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline.

Precision Machined Seats:
Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. The machined body seats enable finer filtration by preventing debris bypass.

Encapsulated CG Style Gasket:
The CG Style cover gasket provides additional radial strength to prevent gasket blowout. It also acts as a compression stop.

Self-Cleaning Capability:
This unit can be fitted with a blow-down valve which facilitates cleaning of the straining element. Please contact factory for more information.
