Schneider Electric / Square D TeSys® 1-Phase Overload relay has a temperature trip rating of 63 - 80 Amps and voltage rating of 600 VAC. It has a thermal trip setting range of 63 - 80 Amps with an adjustable current range. It is suitable for use with TeSys D contactor and direct mounting to LC1 with everlink termination D65A - D80A. Contractor and overload relay are combined to form a complete motor starter. Bimetal overload relay is ambient temperature compensated and class 10 thermal overload relay includes a differential mechanism for high sensitivity to phase loss condition. Power/control wire accommodates of size 0 - 10 AWG and 12 - 18 AWG. Relay is equipped to feature lockable, sealable, manual/auto reset and test trip. It is suitable for industrial motor control applications. Relay meets UL, CSA and IEC standards.
s.
Features:
UNSPSC: 39122330
Frequency Rating: 400 Hz
Phase: 1
Connection: Screw Clamp Terminal
Conductor Size: 12-18 AWG
Degree Of Protection: P2x Conforming To VDE 0106
Mounting: Direct
Item: Thermal Overload Relay
Load Rating: 63 to 80 Amp
Amperage Rating: 80 Amp
Voltage Rating: 600 Volt
Type: Bi-Metallic
Trip Class: 10
Features: Differential
Number of Poles: 3
Height: 4.84"
Depth: 4.76"
Width: 2.95"
Standards: UL, CSA, ATEX D 94/9/CE, GOST, IEC 60947-1

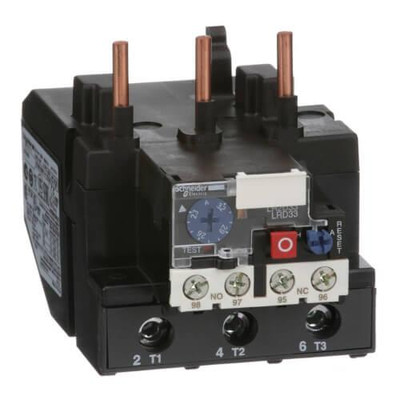

***Note: Image may not be exact representation of item.***
