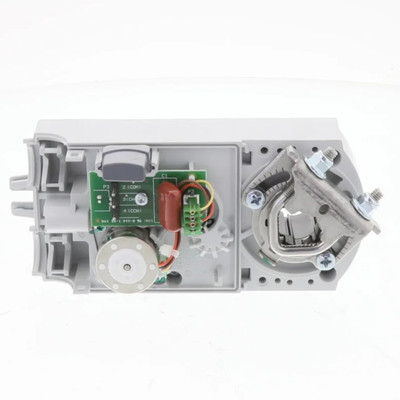

Replacement actuator, only for use with Spyder and Stryker controllers with integral actuators. This non-spring return direct-coupled actuator provides floating control of VAV units. It provides reliable control for air damper applications with up to 10 sq ft (0.9 sq m) / 44 lb-in. (5 Nm) (seal-less damper blades; air friction-dependent).
Features:
Declutch for manual adjustment
Adjustable mechanical end limits
Mountable in any orientation
Specifications:
Application: HVAC
Dimensions (in.): 7.31 in high x 5.31 in wide x 3.25 in deep
Includes: Shaft Adapter
Used With: Spyder and Stryker controllers
Weight (lb): 1.2 lb
Materials: Plastic housing
Mounting: Direct Coupled
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: UL873
Electrical Connections: Ribbon with a push on 3-pin connector for Spyder and Stryker controllers
Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
Supply Voltage: 24 Vac +20%, -15%; 24 Vdc
Power Consumption: Driving-- 5 VA
Shipping and Storage Temperature Range (F): -22 F to +176 F
Ambient Temperature Range (F): -5 F to +122 F
Maximum Noise Rating: Driving (dB(A) @ 1m)-- 35
Stroke: 95 ±3 degrees
Shaft Dimensions (in.): 1/4 to 1/2 in. square or 3/8 to 1/2 in. round
ActuatorType: Damper
Control Signal: Floating
Fail Safe Mode: Non-Spring Return
Torque Rating (lb-in.): 44 lb-in.
Torque Rating (Nm): 5 Nm
Additional Torque Ratings (lb-in.): Maximum Stall 70 lb-in.
Additional Torque Ratings (Nm): Maximum Stall 8 Nm
Rotation to Open: Up to 95 degrees
Rotational Stroke Adjustment: Dual Integral Adjustable Stops
Timing, Nominal: Driving @ 60 Hz, 90 sec
Shaft Adapter Type: U-bolt clamp
Manual operation: Declutch mechanism
