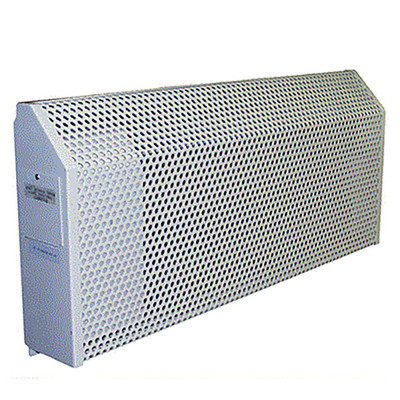

Markel G8803100 Electric Institutional Wall Convector, 36 Inches Long, 1000 Watts, 277V/1Ph
Markel
(No reviews yet)
Write a Review
Write a Review
Markel
Markel G8803100 Electric Institutional Wall Convector, 36 Inches Long, 1000 Watts, 277V/1Ph
$3,170.56
Usually Ships In 2-3 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- Markel-G8803100
- UPC:
- 686334899208
- Weight:
- 120.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Tennessee - Factory Direct
Description:
Markel G8803100 Electric Institutional Wall Convector Features:
- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.
- Catalog Number: 08992002.
- Model Number: G8803100.
- Agency Rating: ETL-CUS.
- Wattage: 1000.
- BTU: 3413.
- Voltage: 277.
- Amp: 3.61.
- Length: 36.
- Depth: 5.
- Height: 18.
- Color: Beige.
- Model Number: G8803100.
- Agency Rating: ETL-CUS.
- Wattage: 1000.
- BTU: 3413.
- Voltage: 277.
- Amp: 3.61.
- Length: 36.
- Depth: 5.
- Height: 18.
- Color: Beige.
Additional Features
- Single phase heaters available in all common voltages from 120V to 600V.
- 11 gauge perforated steel housing powder coated with textured ivory finish.
- Tamper proof left side control panel houses built-in single pole thermostat - range 40F-110F and disconnect switch.
- 11 gauge perforated steel housing powder coated with textured ivory finish.
- Tamper proof left side control panel houses built-in single pole thermostat - range 40F-110F and disconnect switch.
- Thermostat on 120V-277V units is line voltage and low voltage (24V) on 346V-600V units.
- Linear limit type thermal overload with automatic reset.
- Tamper proof fasteners.
- Stainless steel element with Aluminum fins.
- Made in U.S.A.
- Note: Not for residential applications.
- California residents see Prop 65 Warnings.
- Linear limit type thermal overload with automatic reset.
- Tamper proof fasteners.
- Stainless steel element with Aluminum fins.
- Made in U.S.A.
- Note: Not for residential applications.
- California residents see Prop 65 Warnings.
Additional Information
CABINET: Institutional enclosure 11 gauge perforated steel with sloped top design. Heavy duty end caps welded to the enclosure. Control compartment for housing thermostat and disconnect switch is accessible by use of security type fastener. The entire enclosure is protected by epoxy powder coated paint finish.
ELEMENT: All steel high mass element construction with Nickel-Chromium resistance wire embedded in compacted efficient dielectric to ensure proper heat transfer. Aluminum fins mechanically bonded to steel tube allows for increased surface area and even heat transfer.
LIMIT CONTROLS: Automatic reset hydraulic thermal overload covers full length of heating element and shuts down heater when safe operating temperatures are exceeded.
WIRING: Wiring connections shall be made in left end of cabinet enclosure. Wiring must enter into control enclosure behind perforated steel grill.
CONTROLS: All controls are accessible only through control enclosure door. Security type fasteners restrict access to controls. Built in thermostat and disconnect switch with manual adjustment are located in control enclosure.
