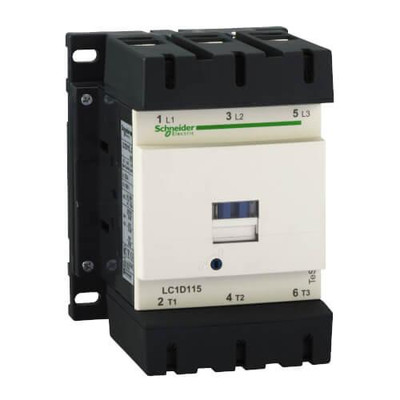

Note: Image may not be exact representation of item.
Features:
HP @ 3 Phase - 230v: 40
HP @ 3 Phase - 480v: 75
HP @ 3 Phase - 575v: 100
Hz: 50/60
Gross Weight: 5.450
Height: 6.22 in.
Full Load Amps-Inductive: 115
Full Load Amps-Resistive: 200
EU RoHS Indicator: Y
GTIN: 00785901213499
Number of Poles: 3
Power Rating/Voltage: 30 Hp At 200 V 3 Phase, 40 Hp At 230 V 3 Phase, 75 Hp At 460 V 3 Phase, 100 Hp At 575 V 3 Phase
Connection: Screw Clamp
Construction Standard: Iec
Commodity Code: 41300
Contact Configuration: 3-Pole (3 NO)
Contactor Type: IEC
Depth: 5.12 in.
Country of Origin: CZ
Enclosure Type: Open
Enclosure: Open
Catalog Description: TeSys D Non-Reversing Contactor 3-Pole (3 NO)
[email protected]
/60Hz
Coil Volts: 120VAC
Coil Voltage:
[email protected]
/60Hz
Catalog Number: LC1D115G7
Mounting: 35mm DIN Rail
Invoice Description English: CONTACTOR 600VAC 115AMP IEC +OPTIONS
Model: LC1D
Select Code: MOTOR CONTROL
Auxiliary Contact Form: 1NO/1NC
Action: Nonreversing
Amperage: 175 A (Ac-1)
Type: Non-Reversing Contactor
Width: 4.33"
Standards: UL,CSA
Standard: UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant
Sub Brand: TeSys
UNSPSC: 39121529
***Note: Image may not be actual representation of item.
