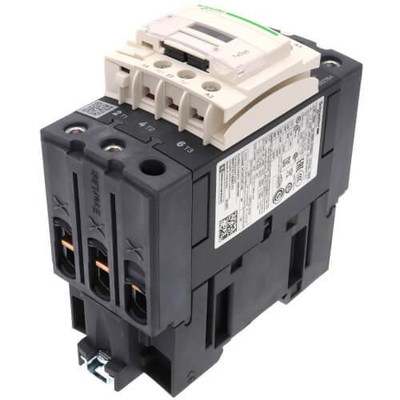

TeSys D Non-Reversing Contactor (40A Inductive/60A Resistive, 24V AC Coil, 3P)

Description:

TeSys D Non-Reversing Contactor (40A Inductive/60A Resistive, 24V AC Coil, 3P) Specifications: Range: TeSys Product or Component Type: Contactor Contactor Application: Motor Control, Resistive Load Utilisation Category: AC-4, AC-3, AC-1 Poles: 3 Power Pole Contact Composition: 3 NO [Ue] Rated Operational Voltage: Power Circuit <= 690 V AC 25...400 Hz, Power Circuit <= 300 V DC [Ie] Rated Operational Current: 60 A (at <60 °C) at <= 440 V AC AC-1 for Power Circuit, 40 A (at <60 °C) at <= 440 V AC AC-3 for Power Circuit Motor Power kW: 18.5 kW at 380...400 V AC 50/60 Hz (AC-3), 11 kW at 220...230 V AC 50/60 Hz (AC-3), 22 kW at 415...440 V AC 50/60 Hz (AC-3), 22 kW at 500 V AC 50/60 Hz (AC-3), 30 kW at 660...690 V AC 50/60 Hz (AC-3), 9 kW at 400 V AC 50/60 Hz (AC-4) Motor Power HP (UL / CSA): 5 hp at 230/240 V AC 50/60 Hz for 1 Phase Motors, 10 hp at 230/240 V AC 50/60 Hz for 3 Phase Motors, 30 hp at 575/600 V AC 50/60 Hz for 3 Phases Motors, 10 hp at 200/208 V AC 50/60 Hz for 3 Phase Motors, 3 hp at 115 V AC 50/60 Hz for 1 Phase Motors, 30 hp at 460/480 V AC 50/60 Hz for 3 Phase Motors Control Circuit Type: AC 50/60 Hz [Uc] Control Circuit Voltage: 24 V AC 50/60 Hz Auxiliary Contact Composition: 1 NO + 1 NC [Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947 Overvoltage Category: III [Ith] Conventional Free Air Thermal Current: 10 A (at 60 °C) for Signalling Circuit, 60 A (at 60 °C) for Power Circuit Irms Rated Making Capacity: 140 A AC for Signalling Circuit Conforming to IEC 60947-5-1, 250 A DC for Signalling Circuit Conforming to IEC 60947-5-1, 800 A at 440 V for Power Circuit Conforming to IEC 60947 Rated Breaking Capacity: 800 A at 440 V for Power Circuit Conforming to IEC 60947 [Icw] Rated Short-Time Withstand Current: 320 A 40 °C - 10 s for Power Circuit, 720 A 40 °C - 1 s for Power Circuit, 72 A 40 °C - 10 min for power Circuit, 165 A 40 °C - 1 min for Power Circuit, 100 A - 1 s for Signalling Circuit, 120 A - 500 ms for Signalling Circuit, 140 A - 100 ms for Signalling Circuit Associated Fuse Rating: 10 A gG for Signalling Circuit Conforming to IEC 60947-5-1, 80 A gG at <= 690 V Coordination Type 1 for Power Circuit, 80 A gG at <= 690 V Coordination Type 2 for Power Circuit Average Impedance: 1.5 mOhm - Ith 60 A 50 Hz for Power Circuit [Ui] Rated Insulation Voltage: Power circuit: 600 V CSA Certified, Power Circuit: 600 V UL Certified, Signalling Circuit: 690 V Conforming to IEC 60947-1, Signalling Circuit: 600 V CSA Certified, Signalling Circuit: 600 V UL Certified, Power Circuit: 690 V Conforming to IEC 60947-4-1 Electrical Durability: 1.4 Mcycles 60 A AC-1 at Ue <= 440 V, 1.5 Mcycles 40 A AC-3 at Ue <= 440 V Power Dissipation Per Pole: 2.4 W AC-3, 5.4 W AC-1 Safety Cover: With Mounting Support: Plate, Rail Connections - Terminals: Control Circuit: Screw Clamp Terminals 2 Cable(s) 1…2.5 mm² Flexible with Cable End, Control Circuit: Screw Clamp Terminals 1 Cable(s) 1…4 mm² Flexible without Cable End, Control Circuit: Screw Clamp Terminals 2 Cable(s) 1…4 mm² Flexible without Cable End, Control Circuit: Screw Clamp Terminals 1 Cable(s) 1…4 mm² Flexible with Cable End, Control Circuit: Screw Clamp Terminals 1 Cable(s) 1…4 mm² Solid without Cable End, Control Circuit: Screw Clamp Terminals 2 Cable(s) 1…4 mm² Solid without Cable End, Power Circuit: Screw Connection 1 Cable(s) 1…35 mm² Flexible without Cable End, Power Circuit: Screw Connection 2 Cable(s) 1…25 mm² Flexible without Cable End, Power Circuit: Screw Connection 1 Cable(s) 1…35 mm² Flexible with Cable End, Power Circuit: Screw Connection 2 Cable(s) 1…25 mm² Flexible with Cable End, Power Circuit: Screw Connection 1 Cable(s) 1…35 mm² Solid without Cable End, Power Circuit: Screw Connection 2 Cable(s) 1…25 mm² Solid without Cable End Tightening Torque: Control Circuit: 1.7 N.m - on Screw Clamp Terminals - with Screwdriver Flat Ø 6 mm, Control circuit: 1.7 N.m - on Screw Clamp Terminals - with Screwdriver Philips No 2, Power Circuit: 8 N.m - on EverLink BTR Screw Connectors - Cable 25…35 mm² Hexagonal Screw Head 4 mm, Power Circuit: 5 N.m - on EverLink BTR Screw Connectors - Cable 1…25 mm² Hexagonal Screw Head 4 mm Operating Time: 4...19 ms Opening, 12...26 ms Closing Safety Reliability Level: B10d = 1369863 Cycles Contactor with Nominal Load Conforming to EN/ISO 13849-1, B10d = 20000000 Cycles Contactor with Mechanical Load Conforming to EN/ISO 13849-1 Mechanical Durability: 6 Mcycles Maximum Operating Rate: 3600 cyc/h 60 °C Coil Technology: Without Built-in Suppressor Module Control Circuit Voltage Limits: Drop-out: 0.3...0.6 Uc AC 50/60 Hz (at 60 °C), Operational: 0.8...1.1 Uc AC 50 Hz (at 60 °C), Operational: 0.85...1.1 Uc AC 60 Hz (at 60 °C) Inrush Power in VA: 140 VA 60 Hz cos phi 0.75 (at 20 °C), 160 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in Power Consumption in VA: 13 VA 60 Hz cos phi 0.3 (at 20 °C), 15 VA 50 Hz cos phi 0.3 (at 20 °C) Heat Dissipation: 4…5 W at 50/60 Hz Auxiliary Contacts Type: Type Mechanically Linked 1 NO + 1 NC Conforming to IEC 60947-5-1, Type Mirror Contact 1 NC Conforming to IEC 60947-4-1 Signalling Circuit Frequency: 25...400 Hz Minimum Switching Current: 5 mA for Signalling Circuit Minimum Switching Voltage: 17 V for Signalling Circuit Non-Overlap Time: 1.5 ms on De-energisation between NC and NO Contact, 1.5 ms on Energisation between NC and NO Contact Insulation Resistance: > 10 MOhm for Signalling Circuit Ambient Air Temperature for Operation: -5…60 °C Ambient Air Temperature for Storage: -60…80 °C Permissible Ambient Air Temperature around the Device: -40…70 °C at Uc Operating Altitude: 3000 m Without Fire Resistance: 850 °C Conforming to IEC 60695-2-1 Warranty: 18 Months
