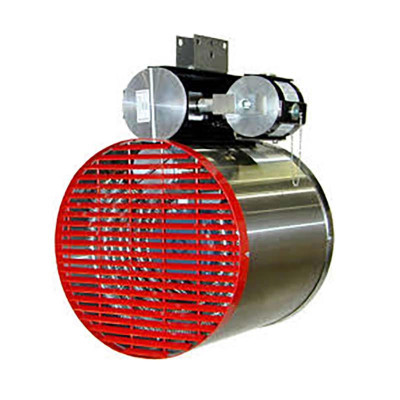

Norseman XGB-225T3B73 Explosion Proof Electric Heater, T3B Temp. Code, 22.5 KW , 480V/3Ph
Norseman
(No reviews yet)
Write a Review
Write a Review
Norseman
Norseman XGB-225T3B73 Explosion Proof Electric Heater, T3B Temp. Code, 22.5 KW , 480V/3Ph
$8,933.59
Usually Ships In 3-4 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- Norseman-XGB-225T3B73
- Weight:
- 222.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Alberta, Canada - Direct From Norseman
Description:
Norseman XGB-225T3B73 Explosion Proof Electric Heater Features:
- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.
- Model Number: XGB-225T3B73
- Wattage: 22.5 KW
- Voltage: 480
- Phase: 3
- Temperature Code: T3B
Applications:
- Water and sewage treatment plants
- Oil refineries
- Compressor stations
- Pulp and paper mills
- Paint storage booths
- Cement plants
- Mines
- Marine and offshore
Features:
- UL-certified for the following Hazardous Locations Classifications: Class I, Divisions 1 & 2, Groups C & D; Class II, Division 1, Groups E, F & G; Class II, Divisions 2, Groups F & G.
- May be tilted at a 30 degree angle below horizontal.
- For lateral airflow, the entire louver assembly can be rotated 90 degrees.
- Patented x-Max housing with slide out terminal block trolley makes electrical supply connection easier.
- Inlet guard.
- Extra heavy wall tubular steel finned heating elements with Nickel plated finish.
- 120 Volt control circuit with: magnetic contactor, dual automatic reset high limits, control transformer, fan delay relay (large cabinet only), control fuse (large cabinet only).
- Heavy duty 16-gauge stainless steel casing.
- Swivel bracket.
- Explosion-proof motor.
Additional Information:
The Norseman XGB Series hazardous environment heater is designed to accommodate your requirements with flexibility and ease of maintenance, even under the toughest conditions.
Norseman XGB unit heaters are available in two sizes, small cabinet units with ratings of up to 10 kW and large cabinet units with ratings of up to 35 kW.
