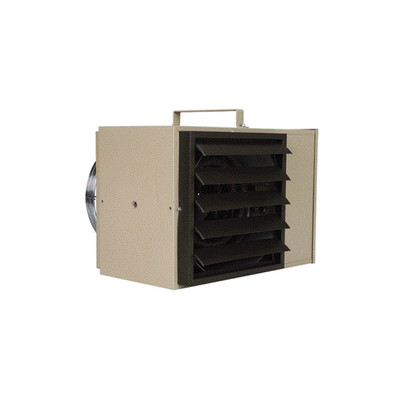

Markel H1HUH15C03 Horizontal Fan Forced Electric Unit Heater Features:
- Catalog Number: 06447102.
- Model Number: H1HUH15C03.
- Agency Rating: ETL-US.
- Air Throw: 45 Ft.
- Amp: 62.5.
- BTU: 51200.
- CFM: 800.
- Control Voltage: 240.
- KW: 15.
- Recommended Mounting Height: 10 Ft.
- Phase: 1.
- Temperature Rise: 59F.
- Voltage: 240.
- Weight (lbs): 54.
- Color: Beige.
Features
- Optional factory installed 24 Volt transformer on 3 KW to 15KW units to convert from line voltage to low voltage remote thermostat operation.
- Optional factory installed summer fan switch to operate the fan only.
- Optional factory installed fan delay switch to purge all residual heat from the unit after the heating element has cycled off.
- Optional factory installed disconnect switch.
- Powder coated epoxy finish for corrosive atmospheres.
- Made in U.S.A.
- California residents see Prop 65 Warnings.
Additional Information
CONSTRUCTION: Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation & maintenance.
HEATING ELEMENT: Circular copper clad steel sheath element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade.
OVERHEAT PROTECTION: All units come equipped with automatic resetting type limit controls to de-energize the heater should an over-temperature situation occur.
FAN and MOTOR: Totally enclosed, single phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 10 KW models and sleeve bearings on 12.5 KW - 48 KW models - mounted with rubber insulators to minimize vibration and noise. Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.
LOUVER ASSEMBLY: Louvers are individually adjustable for directional control of air flow and the entire assembly can be repositioned in the field from down flow to up flow or left / right directional air flow.
TEMPERATURE CONTROLS: 20 KW through 48 KW units and all 480V have built in 24 Volt transformer for low voltage remote thermostat application. 25 KW through 48 KW models available in 2-stage on special order (consult factory).
INSTALLATION: Unit Heaters can be mounted with the motor shaft from horizontal to downward at 45 degrees off horizontal. Pre-drilled holes and installed threaded nuts provided to allow hanging by threaded rods - 1/4 inch for units up to 15 KW and 5/16 inch for 20 KW units and larger. Optional wall / ceiling mounting brackets are available for all units.
