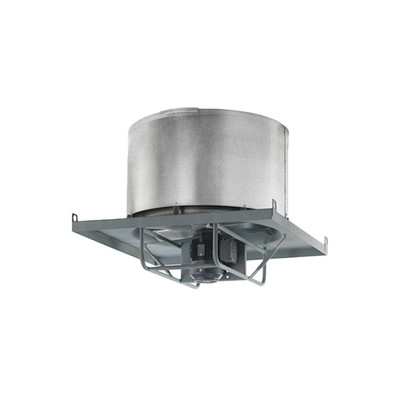

TPI UED24-1-4-TEC Direct Drive Roof Ventilator, .25 HP, Enclosed Motor, 5200 CFM, 115/230V/1Ph
TPI
$5,832.43
Usually Ships In 2-3 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- TPI-UED24-1-4-1-TEC
- Weight:
- 240.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Tennessee - Factory Direct
Description:
TPI UED24-1-4-1-TEC Direct Drive Roof Ventilator Features:
- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.
- .25 HP.
- 5200 CFM at 0 Inch static pressure.
- 115/230V/1Ph.
- Totally enclosed motor.
- Cast Aluminum blades on most models.
- 1-Phase motors are field convertible 115V/230V.
- Motors are set to lower voltage at the factory unless a request is made at time of order to set them to the higher voltage.
- Wind band is 18 gauge galvanized steel.
- Cast Aluminum blades on most models.
- 1-Phase motors are field convertible 115V/230V.
- Motors are set to lower voltage at the factory unless a request is made at time of order to set them to the higher voltage.
- Wind band is 18 gauge galvanized steel.
- Rubber shim under dampers for better seal.
- Size of roof opening to be 6” larger than fan size.
- Some models available with low R.P.M. motor for quieter operation.
- Available options include: Protective coating, prefabricated curbs, disconnect switch.
- 1 year limited warranty.
- California residents see Prop 65 Warnings.
- 1 year limited warranty.
- California residents see Prop 65 Warnings.
Specifications
Catalog Number: 08009002
Model Number: UED24-1/4/TEC
Model Number: UED24-1/4/TEC
Blade Size: 24
Blade Material: Aluminum or Steel
Fan Style Type: Direct Drive
Phase: 1
Voltage: 115/230
Motor Rating HP: 1/4
RPM: 1725
Motor Rating HP: 1/4
RPM: 1725
Motor Volt: 115/230
CFM Static 0": 5200
CFM Static 1/4": 2820
dB @ 10': 75
Weight (lbs): 240
dB @ 10': 75
Weight (lbs): 240
