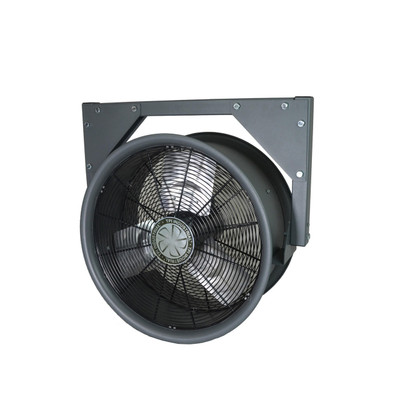

TPI HV-30-480V 30 Inch Industrial High Velocity Blower Fan 9000CFM 480V/1Ph
TPI
$1,678.72
Usually Ships In 2-3 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- TPI-HV-30-480V
- UPC:
- 686334819749
- Weight:
- 85.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Tennessee - Factory Direct
Description:
TPI HV-30-480V 30 Inch Industrial High Velocity Blower Fan Features:
- Housing designed for all types of air circulating applications to provide directional – high velocity air flow.
- 20-gauge all steel construction housing with gray epoxy powder coated finish.
- Front & rear spiral wound grills are OSHA approved and have a black powder coated finish.
- Heavy-duty yoke mounting bracket design with 2” square steel tubing frame.
- Direct drive Totally Enclosed Air-Over (TEAO) motor generating up to 9,000-CFM’s.
- Single speed, ball bearing, with split capacitor, permanently lubricated, TEAO motor operates on 60HZ and 1725-RPMs, and requires hard-wired connection to the supplied electrical enclosure located on the motor housing.
- TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments; rated up to 115°F max. ambient temperature.
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections.
- Built-in rotating design allows the supplied mounting bracket to pivot 120° in (9) adjustment settings at 15° variations.
- All units are shipped fully assembled and ready for hard-wired connections.
- ETL C/US listed for indoor spot cooling applications.
- 2 year motor warranty.
SPECIFICATIONS
Catalog Number: 08196702
Model Number: HV30-480V
Fan Size: 30 Inch
Voltage: 480
Phase: 1
Amp: 1.6
Amp High: 2.1
Motor HP: 1
Wattage: 746
Motor RPM: 1700
CFM: 9000
Velocity Profile CFM/Area Sq. Ft: 14250/375
Blade Size: 28"
Length (in): 16
Width (in): 38.9
Height (in): 39
Weight (lbs): 85
- Housing designed for all types of air circulating applications to provide directional – high velocity air flow.
- 20-gauge all steel construction housing with gray epoxy powder coated finish.
- Front & rear spiral wound grills are OSHA approved and have a black powder coated finish.
- Heavy-duty yoke mounting bracket design with 2” square steel tubing frame.
- Direct drive Totally Enclosed Air-Over (TEAO) motor generating up to 9,000-CFM’s.
- Single speed, ball bearing, with split capacitor, permanently lubricated, TEAO motor operates on 60HZ and 1725-RPMs, and requires hard-wired connection to the supplied electrical enclosure located on the motor housing.
- TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments; rated up to 115°F max. ambient temperature.
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections.
- Built-in rotating design allows the supplied mounting bracket to pivot 120° in (9) adjustment settings at 15° variations.
- All units are shipped fully assembled and ready for hard-wired connections.
- ETL C/US listed for indoor spot cooling applications.
- 2 year motor warranty.
SPECIFICATIONS
Catalog Number: 08196702
Model Number: HV30-480V
Fan Size: 30 Inch
Voltage: 480
Phase: 1
Amp: 1.6
Amp High: 2.1
Motor HP: 1
Wattage: 746
Motor RPM: 1700
CFM: 9000
Velocity Profile CFM/Area Sq. Ft: 14250/375
Blade Size: 28"
Length (in): 16
Width (in): 38.9
Height (in): 39
Weight (lbs): 85
