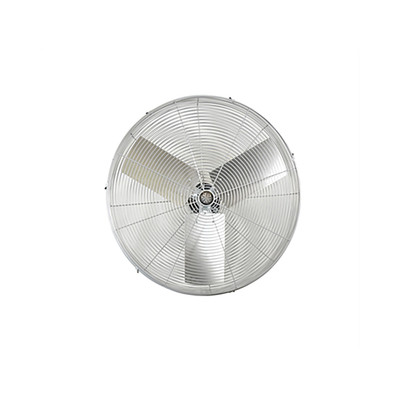

TPI HDH-36 36 Inch Industrial Assembled High Performance Wall Mount Fan, Gray, 7400 CFM, 120V/1Ph
TPI
$760.00
409 In Stock, Usually Ships In 3-5 Business Days
Free ground shipping to the lower 48 states
- Product ID:
- TPI-HDH-36
- UPC:
- 686334819787
- Weight:
- 90.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Tennessee - Factory Direct
Description:
TPI HDH-36 36 Inch Industrial Assembled High Performance Wall Mount Fan, Gray Features:
- Steel construction with silver/gray powder coated; steel motor housing painted black.
- Direct drive, Totally Enclosed Air-Over (TEAO) motor generating up to 12,000-CFM’s.
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections.
- ACH-Series Contain a pull-chain switch and 12’ long SJT-Type cord with grounded plug.
- Direct drive, Totally Enclosed Air-Over (TEAO) motor generating up to 12,000-CFM’s.
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections.
- ACH-Series Contain a pull-chain switch and 12’ long SJT-Type cord with grounded plug.
- ACH-Series Contain self-locking retaining clips to secure front/rear grills and meet OSHA safety requirements.
- Fully-Assembled ready for plug-&-play operation.
- Motor warranty ranges from 1, 3 and 5-years.
- Made in the U.S.A. with domestic and foreign components.
- Motor warranty ranges from 1, 3 and 5-years.
- Made in the U.S.A. with domestic and foreign components.
SPECIFICATIONS
- Catalog Number: 08197802
- Model Number: HDH 36
- Agency Rating: ETL-CUS
- Model Number: HDH 36
- Agency Rating: ETL-CUS
- Fan Style Type: Assembled Circulator
- Fan Size: 23.0 Inch Diameter
- Blade Size: 36
- Velocity Profile CFM / Area Sq. Ft: 12000/325
- CFM High: 7400
- CFM Low: 6300
- Depth: 14.5
- Motor Rating HP: 1/2
- Motor Volt: 120
- Phase: 1
- Blade Size: 36
- Velocity Profile CFM / Area Sq. Ft: 12000/325
- CFM High: 7400
- CFM Low: 6300
- Depth: 14.5
- Motor Rating HP: 1/2
- Motor Volt: 120
- Phase: 1
- Amp: 5.2
- RPM High: 1100
- RPM Low: 800
- Speeds: 2
- Voltage: 120
- Weight (lbs): 90
- Color: Gray
- RPM High: 1100
- RPM Low: 800
- Speeds: 2
- Voltage: 120
- Weight (lbs): 90
- Color: Gray
- Warranty: 3 Year Warranty
MOTOR SPECIFICATIONS
- 2-Speed.
- 1 Phase, 120V.
- Ball bearing.
- Frame size: 48.
- 2-Speed.
- 1 Phase, 120V.
- Ball bearing.
- Frame size: 48.
- Totally enclosed.
- Permanent split capacitor.
- Permanently lubricated.
- .50 Inch Shaft.
- Permanent split capacitor.
- Permanently lubricated.
- .50 Inch Shaft.
NOTE: HDH 36 Wall mount only, mount included, imported to TPI Specifications
