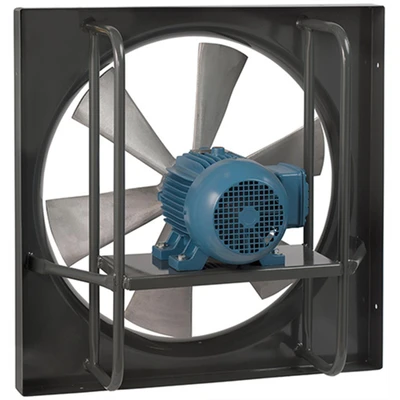

TPI EHD24-3-3-EXP 24 Inch Direct Drive Heavy Duty Exhaust Fan, 3 HP, Explosion Motor, 10500 CFM, 208-230V/460V 3Ph
TPI
Usually Ships In 2-3 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- TPI-EHD24-3-3-EXP
- Weight:
- 170.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Tennessee - Factory Direct
Description:
TPI EHD24-3-3-EXP 24 Inch Direct Drive Heavy Duty Exhaust Fan Features:
- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.
- Totally explosion motor.
- Explosion proof motors are Class 1, Div 1 Group D and Class 2, Div 1, Groups F & G.
- Fans are shipped completely assembled.
- Cast aluminum blades.
- 14 gauge steel panel with welded steel pipe bracing.
- Available options include: CES shutters, EMF front guard, IBG rear guards, acid resistant coating, reversed air flow, flat front venturi.
- Motors are set to lower voltage at the factory, unless a request is made at time of order to set to the higher voltage.
- 1 year limited warranty.
- California residents see Prop 65 Warnings.
Specifications
Catalog Number: 08712302
Model Number: EHD24-3-3/EXP
Blade Size: 24
Blade Material: Cast Aluminum
Fan Style Type: Direct Drive
Phase: 3
Voltage: 208/230/460
Motor HP: 3
RPM: 1725
Motor Volt: 208/230/460
CFM: 10500
dB @ 10': 85
Height: 30 Inches
Width: 30 Inches
Depth: 15 Inches
Weight (Lbs): 170
