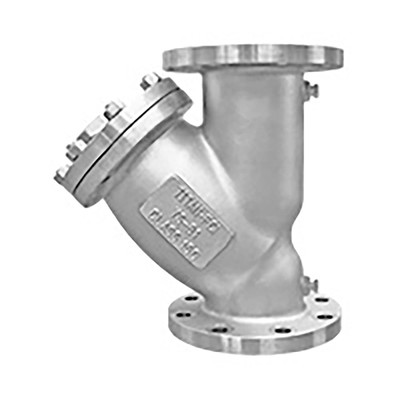

Titan Flow Control YS61S0300 3 Inch Y Strainer, Stainless Steel, ANSI Class 150, Flanged Ends, Bolted Cover, Plugged Blow-off

Titan Flow Control YS61S0300 3 Inch Y Strainer, Stainless Steel, ANSI Class 150, Flanged Ends, Bolted Cover, Plugged Blow-off

(No reviews yet) Write a Review
$1,139.77

Usually Ships In 1-2 Weeks

Free ground shipping to the lower 48 states

Questions? Contact us
Product ID:
Titan-Flow-Control-YS61S0300
Weight:
35.00 (Lbs.)
Ships By:
Free Ground
Ships From:
North Carolina - Direct From Titan

Links To Product Literature:

Titan Flow Control Catalog
Titan Flow Control YS61-SS Specifications
Titan Flow Control YS Installer's Guide

Frequently Bought Together

Please choose options for all selected products

Description:

Titan Flow Control YS61S0300 Features:
- 3 Inch Y Strainer.
- Stainless Steel A351 Gr. CF8M.
- ANSI Class 150.
- Flanged Ends.
- Bolted Cover.
- Plugged Blow-Off.
- Standard 1/16 Perforation screen.
- WOG Rating 275 PSI at 100F.

Additional Features

New Design with Gauge Taps:
Titan Unit YS61 has convenient gauge taps furnished with a plug on both the inlet and outlet sides of sizes 2 inch through 24 inch. These taps allow for easy installation of pressure gauges to monitor differential pressure and determine when screen cleaning is necessary.

Large Straining Capacity:
With its large body and sizable straining element, the YS61 provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline.

Precision Machined Seats:
Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. The machined body seats enable finer filtration by preventing debris bypass.

Self-Cleaning Capability:
With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element. Please contact factory for more information.
