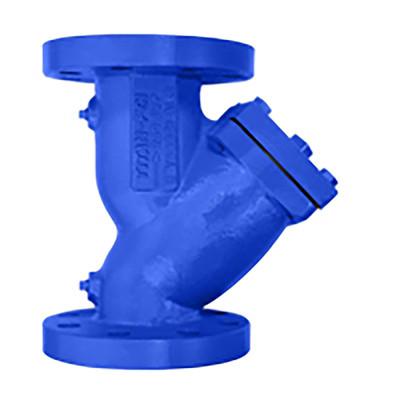

Titan Flow Control YS59I0300 3 Inch Y Strainer, Cast Iron, ANSI Class 250, Flanged Ends, Extra Heavy Body, Bolted Cover, Epoxy Painted, Plugged Blow-off
Titan Flow Control
$224.50
Usually Ships In 1-2 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- Titan-Flow-Control-YS59I0300
- Weight:
- 60.01 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- North Carolina - Direct From Titan
Description:
Titan Flow Control YS59I0300 Features:
- 3 Inch Y Strainer.
- Cast Iron A126 Gr. B.
- ANSI Class 250.
- Flanged Ends.
- Extra Heavy Body.
- Bolted Cover.
- Epoxy Painted.
- Plugged Blow-Off.
- Standard 1/16 Perforation screen.
- WOG Rating 500 PSI at 150F.
Additional Features
Large straining capacity: With its large body and sizeable straining element, the YS58 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline.
Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass.
Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element.
Epoxy painted: All units are epoxy painted to help resist rust and corrosion.
