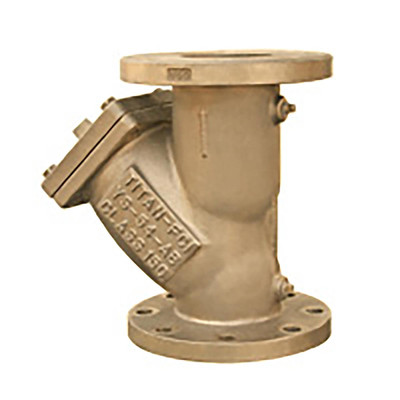

Titan Flow Control YS54AB0400 4 Inch Y Strainer, Aluminum Bronze, ANSI Class 150, Flanged Ends, Bolted Cover, Plugged Blow-off
Titan Flow Control
$2,577.42
Usually Ships In 1-2 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- Titan-Flow-Control-YS54AB0400
- Weight:
- 64.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- North Carolina - Direct From Titan
Description:
Titan Flow Control YS54AB0400 Features:
- 4 Inch Y Strainer.
- Aluminum Bronze B148.
- ANSI Class 150.
- Flanged Ends.
- Epoxy Painted.
- Bolted Cover.
- Plugged Blow-Off.
- Standard 1/16 Perforation screen.
- WOG Rating 225 PSI at 150F.
Additional Features
ASTM B148 Body Material Design:
Aluminum Bronze Is Stronger And Less Likely To Corrode Than Other Bronze Alloys, Making Them A Preferred Choice For Sea Water And Other Applications Where Corrosion Is A Concern. Because Of Its Copper Content, Marine Organisms Cannot Colonize On The Material. Additionally, Titan† Unit YS52-Ab Is Used For Potable Water Applications As It Meets Lead Free Statutes Requiring That The Lead Content In The Wetted Surfaces Is 0.25 percent Or Less As Determined By A Weighted Average.
New Design with Gauge Taps:
Unit YS54-AB Has Convenient Gauge Taps Furnished With A Plug On Both The Inlet And Outlet Sides Of Sizes 2" Through 12". These Taps Allow For Easy Installation Of Pressure Gauges To Monitor Differential Pressure And Determine When Screen Cleaning Is Necessary.
Large Straining Capacity:
With Its Large Body And Sizable Straining Element, The Ys52 Provides Excellent Open Area Ratios That Are Typically Two-And-A-Half Times Larger Than The Corresponding Pipeline, Minimizing Pressure Drop Across The Valve.
Precision Machined Seats:
Precisions machined screen seats in both the body and the cap help to ensure accurate positioning of the screen during reassembly after cleaning. Also, the machined body seats enable finer filtrations by preventing debris bypass.
Self Cleaning Capability:
With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element. Please contact factory for more information.
