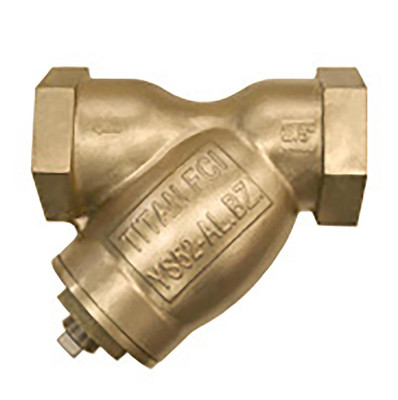

Titan Flow Control YS52AB0050 1/2 Inch Y Strainer, Aluminum Bronze, ANSI Class 250, Threaded Ends, Gasketed Caps, Plugged Blow-off, Min Order Qty 10
Titan Flow Control
(No reviews yet)
Write a Review
Write a Review
Titan Flow Control
Titan Flow Control YS52AB0050 1/2 Inch Y Strainer, Aluminum Bronze, ANSI Class 250, Threaded Ends, Gasketed Caps, Plugged Blow-off, Min Order Qty 10
$58.07
Usually Ships In 1-2 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- Titan-Flow-Control-YS52AB0050
- Weight:
- 0.81 (Lbs.)
- Ships By:
- Free Ground
- Ships From:
- North Carolina - Direct From Titan
Description:
Titan Flow Control YS52AB0050 Features:
- Min Order Qty 10.
- 1/2 Inch Y Strainer.
- Aluminum Bronze B148.
- ANSI Class 250.
- Threaded Ends.
- Epoxy Painted.
- Gasketed Caps.
- Plugged Blow-Off.
- Standard 20 mesh screen.
- WOG Rating 400 PSI at 150F.
Additional Features
ASTM B148 Body Material Design:
Aluminum Bronze Is Stronger And Less Likely To Corrode Than Other Bronze Alloys, Making Them A Preferred Choice For Sea Water And Other Applications Where Corrosion Is A Concern. Because Of Its Copper Content, Marine Organisms Cannot Colonize On The Material. Additionally, Titan† Unit YS52-Ab Is Used For Potable Water Applications As It Meets Lead Free Statutes Requiring That The Lead Content In The Wetted Surfaces Is 0.25 percent Or Less As Determined By A Weighted Average.
Large Straining Capacity:
With Its Large Body And Sizable Straining Element, The Ys52 Provides Excellent Open Area Ratios That Are Typically Two-And-A-Half Times Larger Than The Corresponding Pipeline, Minimizing Pressure Drop Across The Valve.
Precision Machined Seats:
Precisions machined screen seats in both the body and the cap help to ensure accurate positioning of the screen during reassembly after cleaning. Also, the machined body seats enable finer filtrations by preventing debris bypass.
Self Cleaning Capability:
With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element. Please contact factory for more information.
