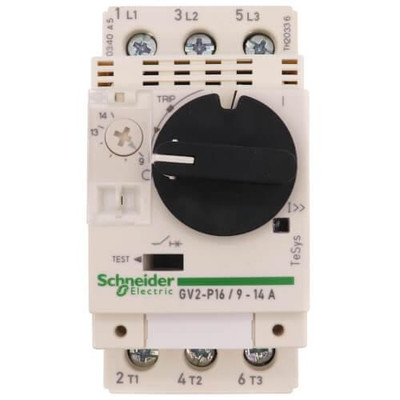

TeSys GV2 Manual Starter and Protector w/ Rotary Knob and Screw Clamp Terminals (9-14A, 690V, 3P)

Description:

TeSys GV2 Manual Starter and Thermal Magnetic Circuit Protector w/ Rotary Knob and Screw Clamp Terminals (9-14A, 690V, 3P) Specifications: Range: TeSys Product Name: TeSys GV2 Device Application: Motor Trip Unit Technology: Thermal-Magnetic Poles: 3 Network Type: AC Utilisation Category: AC-3 IEC 60947-4-1, Category A IEC 60947-2 Network Frequency: 50/60 Hz IEC 60947-4-1 Fixing Mode: 35 mm Symmetrical DIN Rail Clipped, Panel Screwed with 3 x M4 Screws Operating Position: Any Position Motor Power: 5.5 kW 400/415 V AC 50/60 Hz, 7.5 kW 500 V AC 50/60 Hz, 9 kW 690 V AC 50/60 Hz, 11 kW 690 V AC 50/60 Hz Breaking Capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2, 42 kA Icu 500 V AC 50/60 Hz IEC 60947-2 [Ics] Rated Service Short-Circuit Breaking Capacity: 100 % 690 V AC 50/60 Hz IEC 60947-2, 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 75 % 500 V AC 50/60 Hz IEC 60947-2, 75 % 440 V AC 50/60 Hz IEC 60947-2 Control Type: Rotary Knob Line Rated Current: 14 A Thermal Protection Adjustment Range: 9…14 A Magnetic Tripping Current: 170 A [Ue] Rated Operational Voltage: 690 V AC 50/60 Hz IEC 60947-2 [Ui] Rated Insulation Voltage: 690 V AC 50/60 Hz IEC 60947-2 [Ith] Conventional Free Air Thermal Current: 14 A IEC 60947-4-1 [Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947-2 Power Dissipation Per Pole: 2.5 W Mechanical Durability: 100000 Cycles Electrical Durability: 100000 Cycles AC-3 440 V Maximum Operating Rate: 25 cyc/h Rated Duty: Continuous IEC 60947-4-1 Connections - Terminals: Screw Clamp Terminals 2 0.00…0.01 in² (1…6 mm²) Solid, Screw Clamp Terminals 2 0.00…0.01 in² (1.5…6 mm²) Flexible without Cable End, Tightening Torque: 15.05 lbf.in (1.7 N.m) Screw Clamp Terminals Flexible with Cable End Suitability for Isolation: Yes IEC 60947-1 Phase Failure Sensitivity: Yes IEC 60947-4-1 Ambient Air Temperature for Operation: -4…140 °F (-20…60 °C) Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C) Fire Resistance: 1760 °F (960 °C) IEC 60695-2-1 Operating Altitude: 6561.68 ft (2000 m) Warranty: 18 Months
