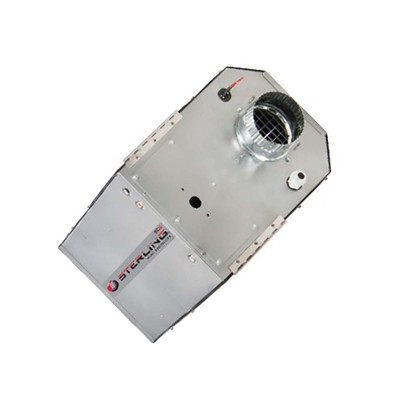

Sterling 11RSS125L1U2 Burner Box, 125000 BTUH, 1 Stage, LP, 115V/1Ph, 4500-7000 Ft, Must Add 30-60 Ft Tube Kit
Sterling
(No reviews yet)
Write a Review
Write a Review
Sterling
Sterling 11RSS125L1U2 Burner Box, 125000 BTUH, 1 Stage, LP, 115V/1Ph, 4500-7000 Ft, Must Add 30-60 Ft Tube Kit
$1,168.43
Usually Ships In 6-7 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- Sterling-11RSS125L1U2
- Weight:
- 60.01 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- North Carolina - Direct From Sterling
Description:
Sterling 11RSS125L1U2 Burner Box Features:
- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.
**This is the burner box ONLY. Use catalog to select matching tube and reflector kit.
- 1 Stage.
- 125000 BTUH input.
- Propane.
- 4500-7000 Ft. elevation.
- Burner box ONLY.
- Review catalog to select matching tube and reflector kit.
- 120 Volt main power / 120 Volt control power, remove jumper in field for 24V control.
- Push Through System (Positive Pressure).
- No draft hoods, totally enclosed combustion chamber.
- Blower motor totally enclosed in the burner box. Ideal for applications where minimal noise (less than 50 dB) is desired.
- Heavy duty permanently lubricated, ball bearing blower motor for maintenance-free operation
Burner System.
- Heavy-duty cast iron burner.
- 10-year limited warranty on burner.
- Inside or outside air for combustion.
- Reliable direct spark ignition system and 100 percent gas shut-off safety control.
- Pre-purge and post-purge function.
- Slow opening redundant combination gas valve for quiet ignition and added safety.
- Diaphragm air switch for proof of venting.
- Diagnostic monitoring light system & burner inspection sight glass.
- 36 inch stainless steel, flexible gas connector included with burner.
- Line voltage or external 24V thermostat connection.
- No draft hoods, totally enclosed combustion chamber.
- Blower motor totally enclosed in the burner box. Ideal for applications where minimal noise (less than 50 dB) is desired.
- Heavy duty permanently lubricated, ball bearing blower motor for maintenance-free operation
Burner System.
- Heavy-duty cast iron burner.
- 10-year limited warranty on burner.
- Inside or outside air for combustion.
- Reliable direct spark ignition system and 100 percent gas shut-off safety control.
- Pre-purge and post-purge function.
- Slow opening redundant combination gas valve for quiet ignition and added safety.
- Diaphragm air switch for proof of venting.
- Diagnostic monitoring light system & burner inspection sight glass.
- 36 inch stainless steel, flexible gas connector included with burner.
- Line voltage or external 24V thermostat connection.
RSS/RSU SERIES
COMMERCIAL LOW INTENSITY
Sterling RSS/RSU Series low intensity infrared heaters are available with inputs of 40 to 200 MBH and system lengths of 10 to 70 feet. All units are field assembled and utilize Sterling’s integral tube/reflector hanging system. The burner is of the box type design and is totally enclosed to protect against dust and moisture.
