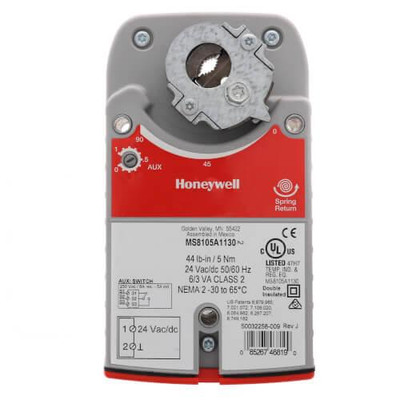

Honeywell MS8105A1130 Two Position Spring Return Direct Coupled Actuator

Description:

Honeywell MS8105A1130 Actuator Spring Return 24V The MN8105A1130 is a Zelix S05 series spring return direct coupled actuator from Honeywell. They are used within heating, ventilating, and air-conditioning systems that require 2-position contol signal with an internal auxiliary switch and a spring return fail-safe operation. Features: Brushless DC submotor with electronic stall protection for floating/modulating models. Brush DC submotor with electronic stall protection for 2-position models. Self-centering shaft adapter (shaft coupling) for wide range of shaft sizes. Models available with three torque ratings: 44 lb-in. (5 N•m), 88 lb-in. (10 N•m), and 175 lb-in. (20 N•m). Models available for use with two-position, single pole single throw (spst), line- (Series 40) or low- (Series 80) voltage controls. Models available for use with floating or switched single-pole, double-throw (spdt) (Series 60) controls. Models available for use with proportional current or voltage (Series 70) controls. Models available with combined floating/modulating control in a single device. Models available with adjustable zero and span. Models available with line-voltage internal end switches. Access cover to facilitate connectivity. Metal housing with built-in mechanical end limits. Spring return direction field-selectable. Shaft position indicator and scale. Manual winding capability with locking function. UL (cUL) listed and CE compliant. All Models are plenum-rated per UL873. 24Vac/Dc Two Position Control Signal 1 Internal Auxiliary Switch ( Adjustable 0-95 Degree) 45 Second Nominal Driving Time 25 Second Maximum Spring Return 44 Lb-In Torque 95 ± 3 Degrees rotational stroke Enclosed Screw Terminal Strip Electrical Connections Nema 2 Rated Self Centering Clamping Shaft Adapter 5-95% RH Humidity Range
