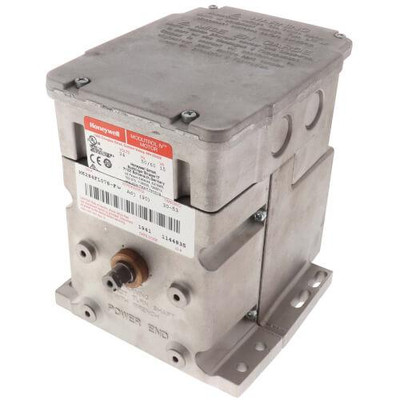

Honeywell M6284F1078-F Floating Salve Motor 24V Spring Return
Honeywell
$1,432.32
18 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)
Free ground shipping to the lower 48 states
- Product ID:
- M6284F1078-F
- Weight:
- 6.32 (Lbs.)
- Ships From:
- Illinois
- Ships By:
- Free Ground, Or Choose Expedited Shipping At Checkout
Description:
Honeywell M6284F1078-F Floating Salve Motor 24V Spring Return These Series 62 Modutrol IV Motors non-spring return floating control motors are used with controllers that provide a switched spdt or floating output to operate dampers or valves. These motors also have an internal electrically isolated feedback potentiometer that provides indication of the motor shaft position some models can be used for slaving Series 90 Motors. Features Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position. Motor and circuitry operate from 24 Vac. Quick-connect terminals are standard--screw terminal adapter is available. Adapter bracket for matching shaft height of older motors is available. Motors have field adjustable stroke (90 to 160 degrees). Integral auxiliary switches are available factory mounted, or can be field added. All models have dual shafts (slotted and tapped on both ends). All models have auxiliary switch cams. Fixed torque throughout the entire voltage range. Motors are designed for either normally open or normally closed valves and dampers. Include electrically isolated feedback potentiometer that provides shaft position indication. -S models with non-linear feedback are for slaving applications only.from our fans
