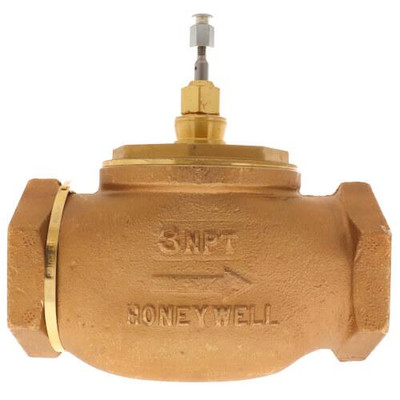

3" Two-way Female NPT Globe Valve, Water, Steam or Glycol (100 Cv)

Description:

Used for two-position or modulating control of steam and water and glycol solutions (to 50 percent concentration) in heating or cooling systems. Features Sizes range from 2-1/2 to 3 inches. Direct acting High pressure steam models with stainless steel trim. Spring-loaded, self-adjusting packing. Stainless steel stem prevents corrosion. Valve designs provide equal percentage characteristics of flow for close control of water, and linear characteristic of flow for close control of steam or chilled water. Valves utilize direct mounting valve actuators or Q5020/Q5022A linkages with Direct Coupled Actuators or Pneumatic Valve Actuators to operate the valve. Specifications Valve Type: Globe Valve Body Pattern: Two-way Flow Characteristic: Equal Percentage Controlled Medium: Chilled or hot water with up to 50% Glycol Connection Type: Female NPT Max. Safe Operating Pressure: 250 psi at 100 F water ANSI/ASME Rating: 150 Maximum Differential for Quiet Water Service (psi): 20 psid Static Pressure Rating: ANSI 150 Fluid Temperature Rating: 40 F to 337 F Materials (Body): Red Brass Materials (Seat): Brass Materials (stem) Stainless Steel Used with: Q5001/Modutrol IV Motor; MP953; ML6420,21A,25; ML7420/ML7421A/ML7425; ML6984/ML7984; Q5020/DCA
