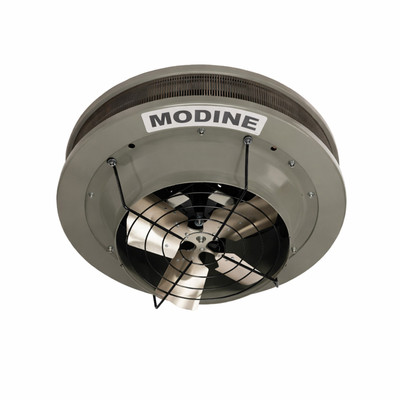

Modine VE50D3401 Electric Heater, 5 KW, 600V/3Ph
(No reviews yet)
Write a Review
![Modine VE Image 1]( "Modine VE Image 1")
Write a Review
Modine
Modine VE50D3401 Electric Heater, 5 KW, 600V/3Ph
$3,257.18
Usually Ships In 2-3 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- V09u-Modine-VE50D3401
- Weight:
- 62.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Virginia - Direct From Modine
Modine VE Vertical Electric Unit Heater Features:
- Available in multiple kilowatt ratings for large industrial coverage.
- Available in multiple kilowatt ratings for large industrial coverage.
- Vertical Airflow Design Discharges warm air downward to eliminate cold zones in high-ceiling buildings.
- All-Electric Operation, 100% efficient—no combustion, venting, or fuel storage required.
- Quiet Performance with Precision-balanced fan motor ensures low noise during operation.
- Low Maintenance Design.
- Simple electric operation with no combustion parts to service.
- Rugged Construction.
- Heavy-gauge steel cabinet withstands years of commercial or industrial use.
- The casing is cleaned and phosphatized before electrostatic application of a baked-on, polyester powder-coat paint.
- Nickel-chromium wire heating elements are enclosed in powder-filled aluminum-coated steel tubes to which spiraled fins are permanently fused for maximum heat transfer.
- Safety Fan Guard Formed from heavy-gauge steel rod stock.
- The fan guard is attached to the unit heater casing and provides a rigid support for the motor and protection from the exposed fan.
- Motor is a thermally protected, continuous-duty type mounted to the fan guard with rubber vibration-absorbing material.
- Fan features a lightweight aluminum propeller fan directly connected to the motor shaft and is statically balanced for optimal performance and low noise.
- Protective aluminum screen protects the heating elements from accidental damage and further enhances the unit heater’s appearance.
- Corrosion-Resistant Baked enamel coating provides long-lasting protection.
- Automatic Reset Overheat Control interrupts the power supply to the heating elements. The control automatically resets itself once the heater cools to a safe temperature.
- Control Compartment Safely encloses power and control terminal blocks, contactor(s), fuses, and transformer.
- Terminal blocks provide easy access for field wiring.
- Motor Heat Shield Protects the motor from heated air passing through the unit heater.
- Mounting Flexibility, Ceiling-suspended or beam-mounted for open-space installations.
Additional Features:
The Modine VE Series Vertical Electric Unit Heater is designed to deliver long heat throw and uniform comfort in large, high-ceiling spaces. Its vertical, high-velocity airflow directs warm air straight down to occupied zones, reducing heat stratification and minimizing energy waste in warehouses, factories, garages, and other high-bay commercial or industrial environments. With all-electric operation, the VE provides 100% efficient, zero-emission heating—eliminating the need for combustion, venting, or fuel storage while ensuring clean, reliable performance.
Built for demanding applications, the VE Series combines high-capacity electric output with rugged, industrial-grade construction. Available in multiple kilowatt ratings up to 50 kW, it meets a wide range of heating requirements while maintaining quiet operation through a precision-balanced fan and thermally protected motor. The heavy-gauge steel cabinet with a corrosion-resistant, baked-on powder-coat finish ensures long-term durability, while low-maintenance electric heating elements, integrated safety controls, and flexible ceiling or beam mounting make the VE a dependable solution for tough commercial and industrial heating needs.
