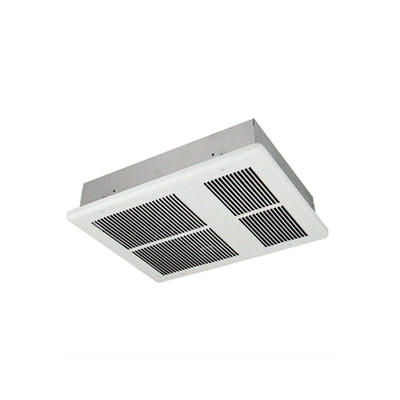

Markel G3387D-RP Fan Forced Electric Ceiling Heater, 4.8KW, 277V/1Ph

(No reviews yet) Write a Review

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Product ID:
22.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Tennessee - Factory Direct

choose options:

Frequently Bought Together

Please choose options for all selected products


Markel G3387D-RP Fan Forced Electric Ceiling Heater Features:
- Catalog Number: 03664402.
- Model Number: G3387D-RP.
- KW: 4.8.
- BTU: 16382.
- Voltage: 277.
- Phase: 1.
- Amp: 17.3.
- CFM: 175.
- Weight (lbs): 22.
- Color: White.
- Agency Rating: ETL-CUS.
Additional Features
- Fan purge circuit (requires 2 wire control circuit when remote wall thermostat is used with the unit).
- Disconnect switch.
- White powder coated 18 Gauge steel grill
- Manual reset thermal limit.
- Steel block fin element.
- Vane axial fan blade: 1.5KW - 4.0KW units: 700 RPM motor; 175 CFM 4.8KW units: 900 RPM motor; 200 CFM.
- Rough in dimensions: 14 3/16 Inch wide x 19 5/16 Inch high x 4 Inch deep.
- Grill dimensions: 15 3/8 Inch wide x 20 9/64 Inch high.
- Optional factory installed tamper resistant thermostat is available.
- Made in U.S.A.
- California residents see Prop 65 Warnings.
Additional Information
The heaters are to be constructed of a heavy gauge steel housing. The finish shall be baked-on powder coat in Ceiling White color. The units shall be available in ratings from 1500 through 4800 Watts with an optional factory installed single pole thermostat. The heaters have a low speed 600-RPM motor, which drives a vane axial blower to deliver a quite 175 CFM’s of down flow air. The heating element shall be of the block finned type with large, parallel steel fins for quick heat transfer. Unit shall have as standard, a manual reset capillary type limit control, for added safety. Unit weight 22 pounds.
