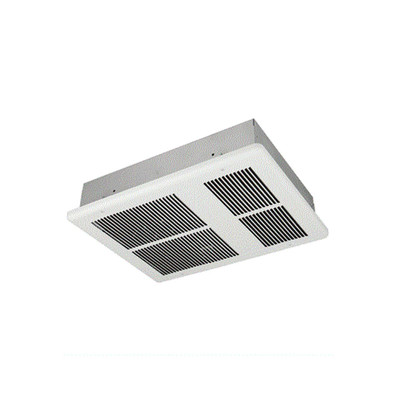

Markel F3387D-RP Fan Forced Electric Ceiling Heater, 4.8KW, 208V/1Ph
Markel
$761.92
3 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)
Free ground shipping to the lower 48 states
- Product ID:
- Markel-F3387D-RP
- UPC:
- 686334366304
- Weight:
- 26.00 (Lbs.)
- Ships By:
- Free Ground, Or Choose Expedited Shipping At Checkout
- Ships From:
- NorthStock In Massachusetts
Description:
Markel F3387D-RP Fan Forced Electric Ceiling Heater, 4.8 KW, 208V/1Ph
The Markel 3380 Series Commercial Fan Forced Electric Ceiling Heaters offer a convenient, durable, and out of the way, heating solution.
Markel F3387D-RP Fan Forced Electric Ceiling Heater Features:
- Catalog Number: 03663002.
- Model Number: F3387D-RP.
- KW: 4.8.
- BTU: 16382.
- Voltage: 208.
- Phase: 1.
- Amp: 23.1.
- CFM: 175.
- Weight (lbs): 22.
- Color: White.
- cETLus listed.
- Model Number: F3387D-RP.
- KW: 4.8.
- BTU: 16382.
- Voltage: 208.
- Phase: 1.
- Amp: 23.1.
- CFM: 175.
- Weight (lbs): 22.
- Color: White.
- cETLus listed.
Additional Features
- Fan purge circuit (requires 2 wire control circuit when remote wall thermostat is used with the unit).
- Disconnect switch.
- White powder coated 18 Gauge steel grill.
- Manual reset thermal limit.
- Steel block fin element.
- Vane axial fan blade: 1.5KW - 4.0KW units: 700 RPM motor; 175 CFM 4.8KW units: 900 RPM motor; 200 CFM.
- Rough in dimensions: 14 3/16 Inch wide x 19 5/16 Inch high x 4 Inch deep.
- Grill dimensions: 15 3/8 Inch wide x 20 9/64 Inch high.
- Optional factory installed tamper resistant thermostat is available.
- Disconnect switch.
- White powder coated 18 Gauge steel grill.
- Manual reset thermal limit.
- Steel block fin element.
- Vane axial fan blade: 1.5KW - 4.0KW units: 700 RPM motor; 175 CFM 4.8KW units: 900 RPM motor; 200 CFM.
- Rough in dimensions: 14 3/16 Inch wide x 19 5/16 Inch high x 4 Inch deep.
- Grill dimensions: 15 3/8 Inch wide x 20 9/64 Inch high.
- Optional factory installed tamper resistant thermostat is available.
- Made in U.S.A.
- California residents see Prop 65 Warnings.
- California residents see Prop 65 Warnings.
Additional Information
The heaters are to be constructed of a heavy gauge steel housing. The finish shall be baked-on powder coat in Ceiling White color. The units shall be available in ratings from 1500 through 4800 Watts with an optional factory installed single pole thermostat. The heaters have a low speed 600-RPM motor, which drives a vane axial blower to deliver a quite 175 CFM’s of down flow air. The heating element shall be of the block finned type with large, parallel steel fins for quick heat transfer. Unit shall have as standard, a manual reset capillary type limit control, for added safety. Unit weight 22 pounds.
The heaters are to be constructed of a heavy gauge steel housing. The finish shall be baked-on powder coat in Ceiling White color. The units shall be available in ratings from 1500 through 4800 Watts with an optional factory installed single pole thermostat. The heaters have a low speed 600-RPM motor, which drives a vane axial blower to deliver a quite 175 CFM’s of down flow air. The heating element shall be of the block finned type with large, parallel steel fins for quick heat transfer. Unit shall have as standard, a manual reset capillary type limit control, for added safety. Unit weight 22 pounds.
