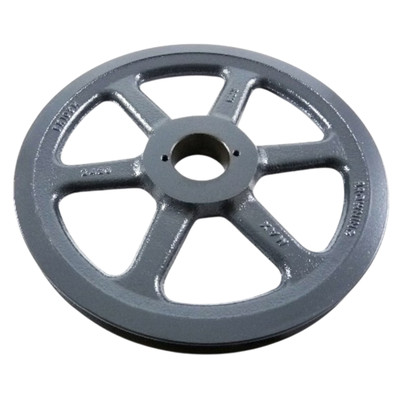

Browning BK105H 10.25 Inch OD Cast Iron V-Belt Sheave, 3/8 Inch Bore, Single Groove For BK Series

(No reviews yet) Write a Review

$164.54

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Browning-BK105H
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Browning BK105H V-Belt Sheave Features:
- 10.25 Inch OD.
- Cast Iron.
- 3/8 Inch Bore.
- Single Groove.
- For BK Series.
- Used With H Series Bushings.
- 4L, 5L, A, And B Belts.

Additional Features:

The Browning BK105H is a single-groove cast iron V-belt sheave with split taper bushed bore H bushing, range 3/8 in to 1-1/2 Inch, 10.25 inch outside diameter, and combination groove for A/4L 9.5 in pitch or B/5L 9.9 in pitch belts. Statically balanced for smooth operation, designed for fractional horsepower power transmission in motors, fans, blowers, pumps.
