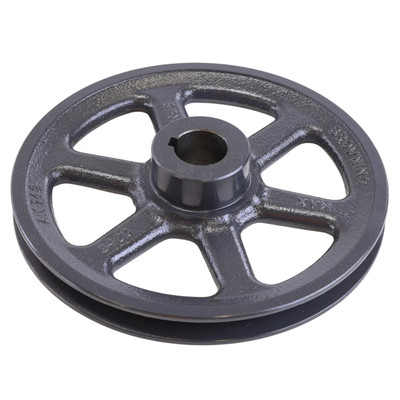

Browning AK74X1 7.25 Inch OD Cast Iron V-Belt Sheave, 1 Inch Bore, Single Groove For AK

(No reviews yet) Write a Review

$100.66

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Browning-AK74X1
Weight:
6.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Browning AK74X1 V-Belt Sheave Features:
- 7.25 Inch OD.
- Cast Iron.
- 1 Inch Bore.
- Single Groove.
- For AK Series.
- Used With 3L, 4L, And A Belts.

Additional Features:

The Browning AK74X1 is a single-groove cast-iron AK-series V-belt sheave designed for 3L, 4L, and A-section belts, featuring a 7.25-inch outside diameter, 7.2-inch pitch diameter for A belts 6.66-inch for 3L belts, a 1-inch finished bore with a 1/4-inch keyway, and a 3/4-inch face width. It is used in fractional-horsepower belt-drive systems such as fans, pumps.
