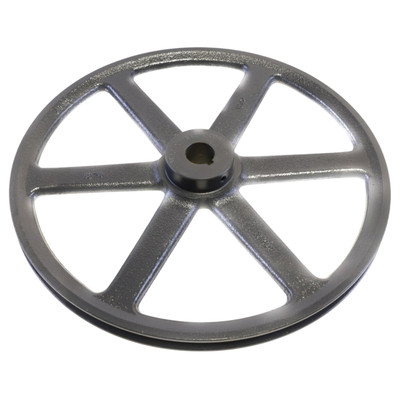

Browning AK134X1 13.25 Inch OD Cast Iron V-Belt Sheave, 1 Inch Bore, Single Groove For AK

(No reviews yet) Write a Review

$623.93

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Browning-AK134X1
Weight:
22.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Browning AK134X1 V-Belt Sheave Features:
- 13.25 Inch OD.
- Cast Iron.
- 1 Inch Bore.
- Single Groove.
- For AK Series.
- Used With 3L, 4L, And A Belts.

Additional Features:

The Browning AK134X1 is a single-groove V-belt sheave from the Browning AK series designed for fractional-horsepower belt drive systems. It is made of cast iron and has a finished 1-inch bore with a keyway and set screw for secure shaft mounting. The pulley has an outside diameter of 13.25 in, a pitch diameter of about 13.2 in A/4L or 12.66 in 3L belts.
