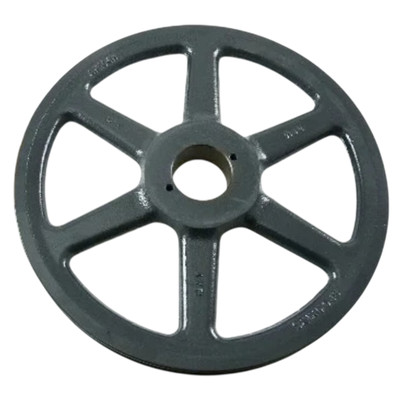

Browning AK104H 10.25 Inch OD Cast Iron Sheave, 3/8 Inch Bore, Single Groove For AK Series

(No reviews yet) Write a Review

$171.53

1 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Browning-AK104H
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Browning AK104H Sheave Features:
- 10.25 Inch OD.
- Cast Iron.
- 3/8 Inch Bore.
- Single Groove.
- For AK Series.
- Used With H Series Bushings.
- 3L, 4L, And A Belts.

Additional Features:
The Browning AK104H is a single-groove cast iron FHP bushed sheave for H split taper bushings 3/8 in to 1-1/2 in bore. It has a 10.25 in outside diameter, 10.2 in pitch diameter for 4L/A belts, 9.66 in for 3L belts, 1.47 in overall width, and weighs approximately 4.3-6.45 lb. It is used in industrial power transmission, HVAC, and light-duty V-belt drives for reliable speed reduction and power transfer.
