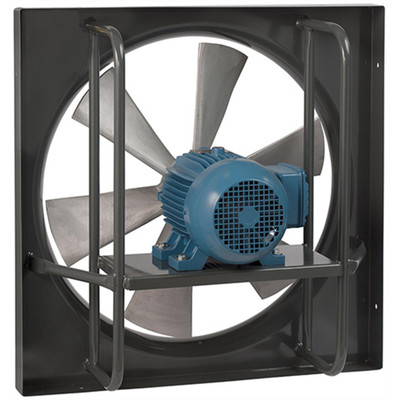

TPI EHD48-3-3-EXP 48 Inch Direct Drive Heavy Duty Exhaust Fan, 3 HP, Explosion Motor, 28600 CFM, 208-230V/460V 3Ph

(No reviews yet) Write a Review

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Product ID:
290.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Tennessee - Factory Direct

choose options:

Frequently Bought Together

Please choose options for all selected products

  • Choose Options


TPI EHD48-3-3-EXP 48 Inch Direct Drive Heavy Duty Exhaust Fan Features:
- Totally explosion motor.
- Explosion proof motors are Class 1, Div 1 Group D and Class 2, Div 1, Groups F & G.
- Fans are shipped completely assembled.
- Cast aluminum blades.
- 14 gauge steel panel with welded steel pipe bracing.
- Available options include: CES shutters, EMF front guard, IBG rear guards, acid resistant coating, reversed air flow, flat front venturi.
- Motors are set to lower voltage at the factory, unless a request is made at time of order to set to the higher voltage.
- 1 year limited warranty.
- California residents see Prop 65 Warnings.

Catalog Number: 07979202
Model Number: EHD48-3-3/EXP
Blade Size: 48
Blade Material: Cast Aluminum
Fan Style Type: Direct Drive
Phase: 3
Voltage: 208/230/460
Motor HP: 3
RPM: 1150
Motor Volt: 208/230/460
CFM: 28600
dB @ 10': 92
Height: 54 Inches
Width: 54 Inches
Depth: 20 Inches
Weight (Lbs): 290
