Roberts-Gordon 90439500K DSI Control Module, Fenwal Automatic Gas Heater Ignition, 24 VAC

(No reviews yet) Write a Review

$309.28

3 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
Roberts-Gordon-90439500K
Weight:
1.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
NorthStock In Massachusetts
Adding to cart… The item has been added
Roberts-Gordon 90439500K DSI Control Module Features:
- 45-second pre-purge timing for combustion safety.
- 15-second ignition trial period.
- 45-second interpurge sequence between ignition attempts.
- 24 VAC input power at 50/60 Hz and 300 mA.
- 24 VAC gas valve output rated up to 2.0 A.
- Integrated flame sensing with FC+ and FC− terminals.
- Built-in diagnostic LED with flash-code fault indicators.
- Compact gray control housing.
- Operating ambient temperature range from -40°F to 160°F.
- Certified to ANSI Z21.20 and CAN/CSA-C22.2 No. 199-M89 standards.

Fits these Roberts-Gordon models:
- Select BH Series.
- Select HED Series.
- Select CTH2D Series.
- Select Blackheat NP1 Series.

Additional Features:

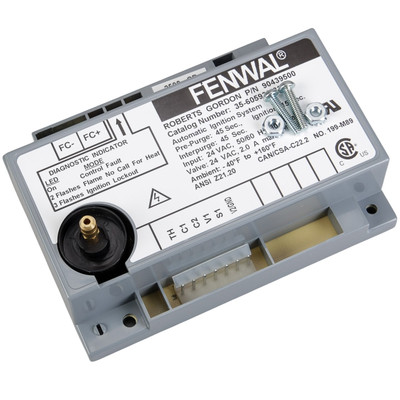

The Roberts-Gordon 90439500K Direct Spark Heater Ignition Control Module, manufactured by Fenwal, is an automatic ignition system designed to provide safe and reliable burner control for select Roberts-Gordon heating equipment, including BH The Economical Unitary Infrared Heaters, HED / CTH2D Gas-Fired Low Intensity Unitary Heaters, and Blackheat NP1 Negative Pressure Unitary or Multiburner Infrared Heaters. The module is housed in a compact gray rectangular enclosure. Functionally, the control executes a 45-second pre-purge, a 15-second ignition trial, and a 45-second interpurge, operating on a 24 VAC, 50/60 Hz input at 300 mA and driving a 24 VAC gas valve up to 2.0 A, ensuring proper combustion sequencing and safety shutdowns across a wide ambient range from -40°F to 160°F. The included ignition lead and the robust, clearly labeled design underscore its intended use as a durable, service-friendly control module that integrates seamlessly into the specified Roberts-Gordon heater platforms to manage ignition and flame safety with precision.
