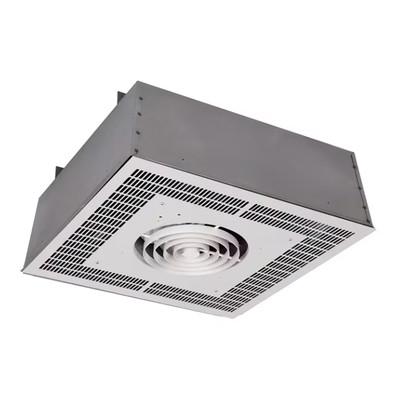

Markel G3483A1 Fan forced Electric Ceiling Heater, 3KW, 277V/1Ph

Markel

(No reviews yet) Write a Review

$1,451.20

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Questions? Contact us

Product ID:: Markel-G3483A1
UPC:: 686334314817
Weight:: 45.00 (Lbs.)
Ships By:: Free Ground
Ships From:: Tennessee - Factory Direct
fbt-product:: /markel-3480-s-factory-installed-disconnect-switch/
fbt-product:: /markel-3480-t-factory-installed-thermostat/

QTY:

Links To Product Literature:

Markel 3480 Catalog
Markel 3480 Submittal
Markel Electric Heat And Air Curtains Catalog
Markel 3480 Installer's Guide

choose options:

Current Stock:

Frequently Bought Together

Total Price:
Add to Cart

Please choose options for all selected products

This Item: Markel G3483A1 Fan forced Electric Ceiling Heater, 3KW, 277V/1Ph

MSRP:

Was:

$1,451.20

(You save )

Usually Ships In 2-3 Weeks
Choose Options

Availability Optional

**Not Cancelable, Not Returnable - Please Double Check To Confirm The Item Is Correct For Your Application** * I Understand That This Item Is Not Cancelable And Not Returnable

Description:

Markel G3483A1 Fan forced Electric Ceiling Heater Features:

- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.

- Catalog Number: 03148102.
- Model Number: G3483A1.
- Amp: 10.8.
- BTU: 10200.
- CFM: 600.
- KW: 3.0.
- Agency Rating: ETL-CUS.
- Phase: 1.
- Temperature Rise: 22.
- Voltage: 277.
- Weight (lbs): 45.
- Color: White.

Additional Features
- White powder coated 20 gauge grill.
- All units have manual reset thermal limit, 24V control transformer, and 24V relay (A1 suffix).
- Enclosed steel fin sheath element.
- Rough in dimensions: 23-1/16 Inch sq. x 9-1/8 Inch deep.

- Maximum mounting is 12 Ft. At Finished Floor
- Made in U.S.A.

- California residents see Prop 65 Warnings.

Additional Information
Contractor shall supply and install heavy duty ceiling mounted forced air electric heater(s) of the wattage, voltage and phase as indicated on the plans. The heater shall be so designed to provide an even distribution of heated air to the space to be heated by drawing return air in the periphery of the heater, across and through the element and be discharged from the center section of the heater by means of an electric motor and axial flow fan blade.

Heaters shall be recessed type and mounted flush with the finished ceiling. The return grille assembly shall be constructed of a one piece heavy gauge steel with 1/4 Inch slots for return air and concentric rings for uniform air discharge. Grille assembly shall be attached to chassis by tamper-resistant (allen head) machine screws. All parts of enclosure shall be heavy gauge steel, zinc coated both sides and finished in neutral off white powder coat paint.

Enclosure shall be constructed of 1/6 Inch x 3/8 Inch rounded edge horizontal steel louvers which shall be spaced for maximum opening of 5/16 Inch. Louvers shall be welded at every intersection to evenly spaced 1/8 Inch diameter vertical members. Discharge grille to have concentric rings for uniform air discharge. Grille assembly shall be attached to chassis by tamper-resistant (allen head) machine screws. All part of enclosure shall be heavy gauge steel, Zinc coated both sides and finished in neutral off white colored powder coat finish.

Motor shall be permanent lubricated, unit bearing, totally enclosed, impedance protection. Motors shall operate at no more than 1300 RPM and shall be same voltage as the heater.

Heaters shall have a rating of 600 CFM at 1,000 F.P.M. with a maximum temperature rise of 44 degrees F.

Element assemblies shall consist of two or three corrosion resistant steel sheathed type elements mechanically bonded to common corrosion resistant steel fins. Each sheathed element shall consist of helically coiled Nickel Chromium alloy resistant wire completely embedded in and surrounded by magnesium oxide, enclosed and wedged into corrosion resistant steel sheaths. Elements shall have 2 inch cold conductor pins extending into sheath and shall have a density of no more than 60 Watts per inch.

Heaters shall be equipped with a manual reset thermal overload which disconnects elements and motor in the event normal operating temperatures are exceeded. For safety, if opened due to abnormal temperature, thermal overload shall remain open until manually reset. Automatic reset thermal overloads which allow the element to continue to cycle under abnormal conditions will not be accepted. Heaters shall be ETL listed.
