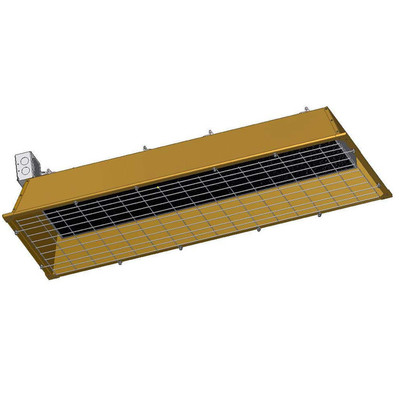

Fostoria FSS-9548-3 Heavy Duty Flat Panel Radiant Heater, 9500 Watts, 480V/1-3Ph

(No reviews yet) Write a Review

$2,201.63

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Product ID:
Fostoria-FSS-9548-3
UPC:
686334488341
Weight:
60.01 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Multiple Warehouses - Direct From Fostoria
Adding to cart… The item has been added
Fostoria FSS-9548-3 Flat Panel Radiant Heater Features:
- Catalog Number: 04883402.
- Model Number: FSS-9548-3.
- Agency Rating: ETL-CUS.
- Voltage: 480.
- Wattage: 9500.
- Amps: 19.8/11.44.
- Phase: 1/3.
- BTU HR: 32414.
- Element Number: 1.
- Element PN: 01357902.
- Mounting Height: 8' - 10'.
- Length: 49.
- Width: 20.
- Depth: 8.
- Color: Gold Ano. AL.
- Weight (lbs): 28.

Additional Information:
- High-density, medium wavelength radiant heat, with 60 degree symmetric heat pattern.
- Flat panel emitter operates at a radiant efficiency of 78.5 percent.
- Non-glare, uniform heat generating directional heat pattern.
- Rugged steel structure surrounds emitter element, great for high vibration areas.
- Gold anodized aluminum housing for efficient, long term reflectivity & corrosion resistance.
- Single or three phase wiring on select models.
- L brackets included for chain suspension, or rigid mounting.
- Field wiring box mounted on each heater.
- Heavy duty wire guard factory installed.
- 25,000 hour element life expectancy.
