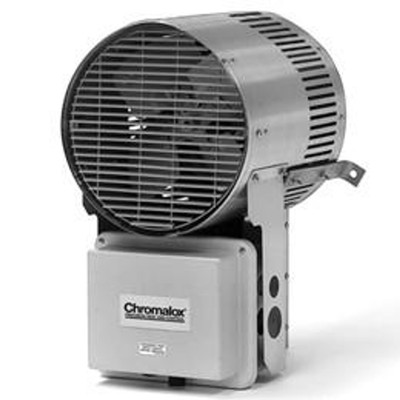

Chromalox HD3D-1000 Washdown Heater, 10 KW, 480V/1Ph PCN 520292

(No reviews yet) Write a Review

Chromalox

$2,887.77

Usually Ships In 25-26 Weeks

Shipping truck icon

Free ground shipping to the lower 48 states

Product ID:
Chromalox-HD3D-1000-480V-1PH
Weight:
60.01 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Multiple Warehouses - Direct From Chromalox
Choose Options

choose options:

Chromalox HD3D Washdown Heater Features:

- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.

- Automatic Reset Thermal Cutout is provided for fast heat response and overheat protection.
- Fan Time Delay Relay dissipates residual heat build-up after shutdown.
- Low Profile Fixed Wall & Ceiling Mounting Bracket, Non-Swiveling.
- Roll Formed Case is constructed of 20 gauge corrosion resistant type 304 stainless steel.
- Adjustable Discharge Grille directs air flow up or down as needed.
- NEMA 4X Control Enclosure houses the heater controls, contactors and control voltage transformer, easily accessible from front of heater.
- High quality, long-life, Stainless Steel Fintube® (type 316) offers maximum resistance to corrosion.
- Totally Enclosed Motor.
- The motor is permanently lubricated, ball bearing type and is epoxy painted for moisture and corrosion resistance.
- Dynamically Balanced Fan .
- Aluminum fan is epoxy coated and provides optimum air flow across the heating elements.

Additional Information:
This reliable, rugged, self-contained HD3D heater is an ideal heat source for freeze protection or comfort heat in dusty/dirty/corrosive non-hazardous environments. Standard HD3D heaters include low profile stainless steel wall/ceiling mounting brackets that can be used to mount directly to a wall for horizontal airflow perpendicular to the wall. These brackets can also be used to mount the heater directly to the
ceiling for vertical airflow.
