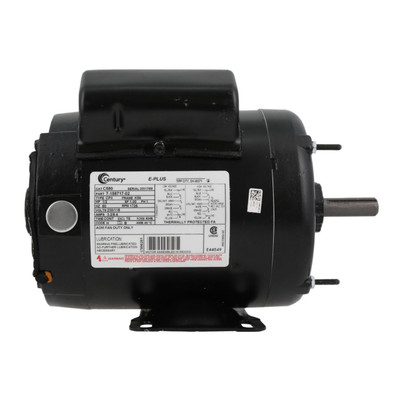

Century Motors C580 Belt Drive Fan Motor, 1/2HP, 230/115V, 1800 RPM, Single Phase

(No reviews yet) Write a Review

$524.00

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-C580
Weight:
29.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Century Motors C580 Belt Drive Fan Motor Features:
- 1/2Hp.
- 230/115V.
- 1800Rpm.
- Single Phase.
- 6.4-3.2 Amps.
- K56 Nema Frame Size.
- Totally Enclosed Air Over.
- Ball Bearing.
- Rigid Base.
- 1/2" x 2" Shaft.
- Reversible Rotation.

Additional Features:
The Century Motors C580 is a 1/2 HP farm duty belt-drive fan motor featuring capacitor-start/capacitor-run design, single-phase 60 Hz operation, dual voltage 115/230V, 1800 RPM, 56 frame, TEAO (Totally Enclosed Air Over) enclosure, rigid base, ball bearings, automatic reset thermal protection, reversible rotation (CW/CCW), Class B insulation, service factor 1.0, and extended thru-bolts.
