Browning AK154H 15.25 Inch OD Cast Iron V-Belt Sheave, 0.5 Inch Bore, Single Groove For AK

(No reviews yet) Write a Review

$290.66

1 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Browning-AK154H
Weight:
22.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

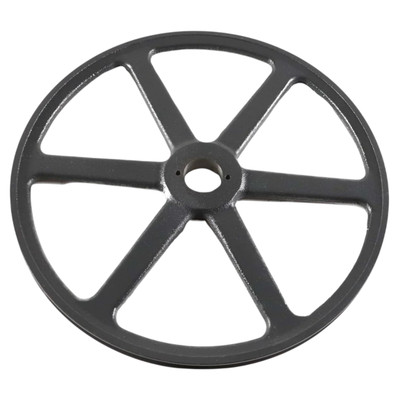

Browning AK154H V-Belt Sheave Features:
- 15.25 Inch OD.
- Cast Iron.
- 0.5 Inch Bore.
- Single Groove.
- For AK Series.
- Used With H Series Bushings For 3L, 4L, And A Belts.

Additional Features:

The Browning AK154H is a single-groove V-belt sheave from the AK series designed for fractional-horsepower belt drive systems. It is of close-grain cast iron and uses an H-style split-taper bushing for mounting on shafts with a bore range of 0.5-1.5 in. The pulley has an outside diameter of 15.25 in, pitch diameter of 15.2 in for A/4L and 14.66 in for 3L belts.
