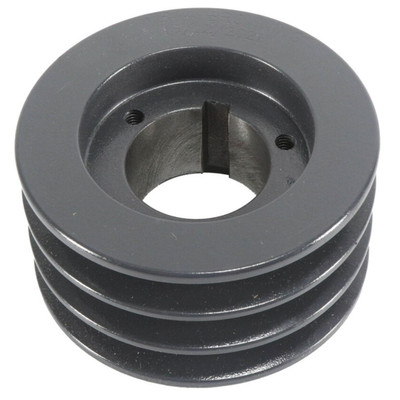

Browning 3TB44 4.75 Inch OD Cast Iron V-Belt Sheave, 1/2 Inch Bore, Three Groove For P1 Series

(No reviews yet) Write a Review

$207.44

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Browning-3TB44
Weight:
6.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Browning 3TB44 V-Belt Sheave Features:
- 4.75 Inch OD.
- Cast Iron.
- 1/2 Inch Bore.
- Three Groove.
- For P1 Series Bushings.
- A, AX, B, And BX Belts.

Additional Features:

The Browning 3TB44 is a TB-series, 3-groove cast-iron sheave designed for use with A and B section V-belts in industrial power-transmission systems. It a 4.75-inch outside diameter, 4.2-inch pitch diameter for A belts and 4.7-inch for B belts, and a 2-1/2-inch face width, and it mounts using a P1 split-taper bushing with a bore range 1/2 to 1-3/4 inches.
