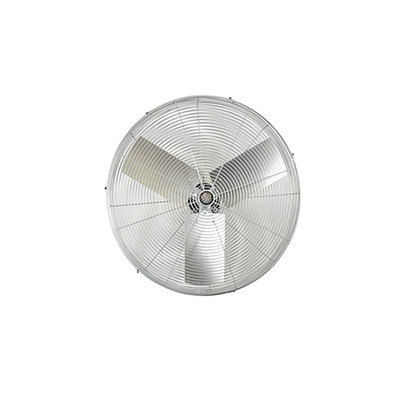

TPI IHP-30-H-277 30 Inch Industrial Assembled Fan Head, 5400CFM 277V/1Ph

(No reviews yet) Write a Review

$753.31

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Product ID:
TPI-IHP-30-H-277
UPC:
686334854221
Weight:
44.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Multiple Warehouses - Direct From TPI
Adding to cart… The item has been added
TPI IHP 30-H-277 30 Inch Industrial Assembled Fan Head Features:
- No cord-junction box provided for hard wiring.
- Steel hub/spider aluminum paddle blades.
- Coated steel guards.
- Meets OSHA standards.
- 1 year limited warranty.
- Made in U.S.A. with domestic and foreign components.
- CFM measured 2 feet from face of fan.
- Wash down rated fan heads have heavy zinc coated guards - Use FDA white coated mounts for food service applications.

SPECIFICATIONS
- Catalog Number: 08542202
- Model Number: IHP 30-H-277
- Agency Rating:ETL-CUS
- Blade Size: 30
- Velocity Profile CFM / Area Sq. Ft: 7200 / 250
- CFM High: 5400
- CFM Low: 4700
- Motor HP: 1/3
- Phase: 1
- 1ph AMP 227V: 1
- Voltage: 277
- Weight (lbs): 44

MOTOR SPECIFICATIONS
- All 1 Speed (except 277V which is 2 Speed).
- Totally enclosed, permanently lubricated.
- Ball bearing.
