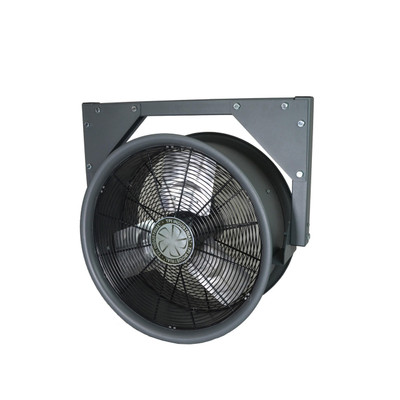

TPI HV-24-480V 24 Inch Industrial High Velocity Blower Fan 5290CFM 480V/1Ph
TPI
(No reviews yet)
Write a Review
Write a Review
TPI
TPI HV-24-480V 24 Inch Industrial High Velocity Blower Fan 5290CFM 480V/1Ph
$1,161.60
20 In Stock, Usually Ships In 3-5 Business Days
Free ground shipping to the lower 48 states
- Product ID:
- TPI-HV-24-480V
- UPC:
- 686334819633
- Weight:
- 58.00 (Lbs.)
- Ships By:
- Free Ground
- Ships From:
- Tennessee - Factory Direct
Description:
TPI HV-24-480V 24 Inch Industrial High Velocity Blower Fan Features:
- Housing designed for all types of air circulating applications to provide directional – high velocity air flow.
- 20-gauge all steel construction housing with gray epoxy powder coated finish.
- Front & rear spiral wound grills are OSHA approved and have a black powder coated finish.
- Heavy-duty yoke mounting bracket design with 2” square steel tubing frame.
- Direct drive Totally Enclosed Air-Over (TEAO) motor generating up to 9,000-CFM’s.
- Single speed, ball bearing, with split capacitor, permanently lubricated, TEAO motor operates on 60HZ and 1725-RPMs, and requires hard-wired connection to the supplied electrical enclosure located on the motor housing.
- TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments; rated up to 115°F max. ambient temperature.
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections.
- Built-in rotating design allows the supplied mounting bracket to pivot 120° in (9) adjustment settings at 15° variations.
- All units are shipped fully assembled and ready for hard-wired connections.
- ETL C/US listed for indoor spot cooling applications.
- 2 year motor warranty.
SPECIFICATIONS
Catalog Number: 08196302
Model Number: HV24-480V
Fan Size: 24 Inch
Voltage: 480
Phase: 1
Amp: 1.1
Amp High: 1.3
Motor HP: 1/2
Wattage: 373
Motor RPM: 1725
CFM: 5290
Velocity Profile CFM/Area Sq. Ft: 8500/275
Blade Size: 22"
Length (in): 13.5
Width (in): 33.3
Height (in): 31.4
Weight (lbs): 58
- Housing designed for all types of air circulating applications to provide directional – high velocity air flow.
- 20-gauge all steel construction housing with gray epoxy powder coated finish.
- Front & rear spiral wound grills are OSHA approved and have a black powder coated finish.
- Heavy-duty yoke mounting bracket design with 2” square steel tubing frame.
- Direct drive Totally Enclosed Air-Over (TEAO) motor generating up to 9,000-CFM’s.
- Single speed, ball bearing, with split capacitor, permanently lubricated, TEAO motor operates on 60HZ and 1725-RPMs, and requires hard-wired connection to the supplied electrical enclosure located on the motor housing.
- TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments; rated up to 115°F max. ambient temperature.
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections.
- Built-in rotating design allows the supplied mounting bracket to pivot 120° in (9) adjustment settings at 15° variations.
- All units are shipped fully assembled and ready for hard-wired connections.
- ETL C/US listed for indoor spot cooling applications.
- 2 year motor warranty.
SPECIFICATIONS
Catalog Number: 08196302
Model Number: HV24-480V
Fan Size: 24 Inch
Voltage: 480
Phase: 1
Amp: 1.1
Amp High: 1.3
Motor HP: 1/2
Wattage: 373
Motor RPM: 1725
CFM: 5290
Velocity Profile CFM/Area Sq. Ft: 8500/275
Blade Size: 22"
Length (in): 13.5
Width (in): 33.3
Height (in): 31.4
Weight (lbs): 58
