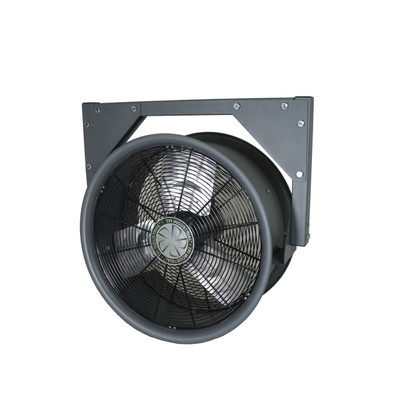

TPI HV-18-277V 18 Inch Industrial High Velocity Blower Fan 3000CFM 277V/1Ph

(No reviews yet) Write a Review

11 In Stock, Usually Ships In 3-5 Business Days

Free ground shipping to the lower 48 states

Product ID:
45.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Tennessee - Factory Direct

Frequently Bought Together

Please choose options for all selected products


TPI HV-18-277V 18 Inch Industrial High Velocity Blower Fan 3000CFM 277V 1Ph Features:
- Housing designed for all types of air circulating applications to provide directional – high velocity air flow.
- 20-gauge all steel construction housing with gray epoxy powder coated finish
- Front & rear spiral wound grills are OSHA approved and have a black powder coated finish.
- Heavy-duty yoke mounting bracket design with 2” square steel tubing frame
- Direct drive Totally Enclosed Air-Over (TEAO) motor generating up to 9,000-CFM’s
- Single speed, ball bearing, with split capacitor, permanently lubricated, TEAO motor operates on 60HZ and 1725-RPMs, and requires hard-wired connection to the supplied electrical enclosure located on the motor housing
- TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments; rated up to 115°F max. ambient temperature.
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections
- Built-in rotating design allows the supplied mounting bracket to pivot 120° in (9) adjustment settings at 15° variations.
- All units are shipped fully assembled and ready for hard-wired connections
- ETL C/US listed for indoor spot cooling applications
- 2 year motor warranty
Catalog Number: 08195802
Model Number: HV18-277V
Fan Size: 18 Inch
Voltage: 277
Phase: 1
Amp: 1.5
Amp High: 2.1
Motor HP: 1/2
Wattage: 373
Motor RPM: 1725
CFM: 3000
Velocity Profile CFM/Area Sq. Ft: 5000/175
Blade Size: 16"
Length (in): 13.5
Width (in): 27.4
Height (in): 26
Weight (lbs): 45
