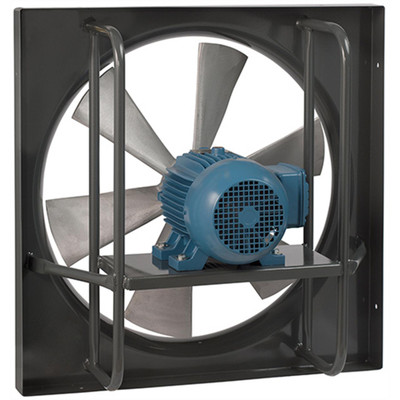

TPI EHD12-1-4-1-EXP 12 Inch Direct Drive Heavy Duty Exhaust Fan, 1/4 HP, Explosion Motor, 1180 CFM, 115/230V/1Ph

(No reviews yet) Write a Review

TPI

$2,500.56

Usually Ships In 2-3 Weeks

Shipping truck icon

Free ground shipping to the lower 48 states

Product ID:
TPI-EHD12-1-4-1-EXP
Weight:
35.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Multiple Warehouses - Direct From TPI
Choose Options

choose options:

TPI EHD12-1-4-1-EXP 12 Inch Direct Drive Heavy Duty Exhaust Fan Features:

- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.


- Totally explosion motor.
- Explosion proof motors are Class 1, Div 1 Group D and Class 2, Div 1, Groups F & G.
- Fans are shipped completely assembled.
- Cast aluminum blades.
- 14 gauge steel panel with welded steel pipe bracing.
- Available options include: CES shutters, EMF front guard, IBG rear guards, acid resistant coating, reversed air flow, flat front venturi.
- Motors are set to lower voltage at the factory, unless a request is made at time of order to set to the higher voltage.
- 1 year limited warranty.
- California residents see Prop 65 Warnings.


Specifications
Catalog Number: 08008002
Model Number: EHD12-1/4/EXP
Blade Size: 12
Blade Material: Cast Aluminum
Fan Style Type: Direct Drive
Phase: 1
Voltage: 115/230
Motor HP: 1/4
RPM: 1725
Motor Volt: 115/230
CFM: 1180
dB @ 10': 74
Height: 16 Inches
Width: 16 Inches
Depth: 11 Inches
Weight (Lbs): 35
