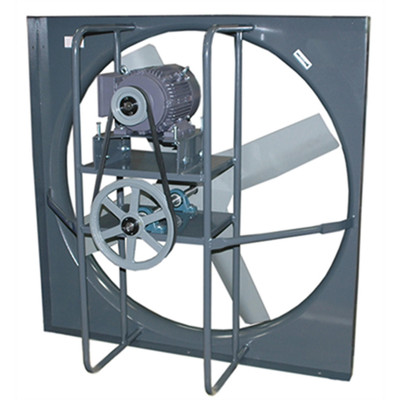

TPI EHB48-3-3-EXP 48 Inch Belt Drive Heavy Duty Exhaust Fan, 3 HP, Explosion Proof Motor, 28150 CFM, 208-230V/460V 3Ph
TPI
Usually Ships In 2-3 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- TPI-EHB48-3-3-EXP
- Weight:
- 270.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Tennessee - Factory Direct
Description:
TPI EHB48-3-3-EXP 48 Inch Belt Drive Heavy Duty Exhaust Fan Features:
- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.
- Explosion Proof motor.
- Explosion proof motors are Class 1, Div 1 Group D and Class 2, Div 1, Groups F & G.
- Fans are shipped completely assembled.
- Cast aluminum blades on EXP explosion proof models.
- 14 gauge steel panel with welded steel pipe bracing.
- If accessory shutter is ordered mount shutter 1/3 the distance of the fan opening size.
- Available options include: CES shutters, EMF front guard, IBG rear guards, acid resistant coating, reversed air flow, flat front venturi.
- Motors are set to lower voltage at the factory, unless a request is made at time of order to set to the higher voltage.
- 1 year limited warranty.
- California residents see Prop 65 Warnings.
Specifications
Catalog Number: 08537202
Model Number: EHB48-3-3/EXP
Blade Size: 48
Blade Material: Cast Aluminum
Fan Style Type: Belt Drive
Phase: 3
Voltage: 208/230/460
Motor HP: 3
RPM: 680
Motor Volt: 208/230/460
CFM: 28150
dB @ 10': 80
Height: 54 Inches
Width: 54 Inches
Depth: 21 Inches
Weight (Lbs): 270
