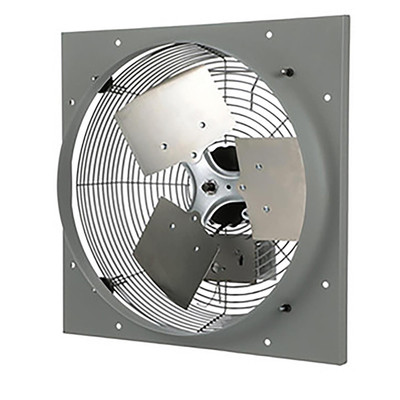

TPI CE20-DVC 20 Inch Direct Drive Venturi Mounted Exhaust Fan With SJT Grounded Cord, 2 Speed, 1/4 HP, 2925 CFM, 120V/1Ph
TPI
$678.92
Usually Ships In 2-3 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- TPI-CE20-DVC
- UPC:
- 686334821810
- Weight:
- 34.00 (Lbs.)
- Ships By:
- Free Ground
- Ships From:
- Tennessee - Factory Direct
Description:
TPI CE20-DVC 20 Inch Direct Drive Venturi Mounted Exhaust Fan Features:
- Can be installed from inside wall.
- Can be used with external shutter.
- Pull chain switch.
- Includes 10 foot long SJT grounded cord.
- Can be installed from inside wall.
- Can be used with external shutter.
- Pull chain switch.
- Includes 10 foot long SJT grounded cord.
- Aluminum blade.
- Steel spiral wire guards.
- Steel spiral wire guards.
- Made in U.S.A. with domestic and foreign components.
- California residents see Prop 65 Warnings.
- California residents see Prop 65 Warnings.
SPECIFICATIONS
Catalog Number: 08218102
Model Number: CE 20-DVC
Fan Style Type: Direct Drive
Blade Size: 20
Blade Material: Aluminum
Switch: Pull Chain
Speeds: 2
CFM High: 2925
CFM Low: 2380
Motor Rating HP: 1/4
Motor Volt: 120
RPM High: 1140
RPM Low: 1070
Voltage: 120
Amp: 3.2
Phase: 1
Connection Type: Plug-in
Model Number: CE 20-DVC
Fan Style Type: Direct Drive
Blade Size: 20
Blade Material: Aluminum
Switch: Pull Chain
Speeds: 2
CFM High: 2925
CFM Low: 2380
Motor Rating HP: 1/4
Motor Volt: 120
RPM High: 1140
RPM Low: 1070
Voltage: 120
Amp: 3.2
Phase: 1
Connection Type: Plug-in
Cord Type: SJT
Color: Gray Venturi/Galvanized Spiral
Height: 23.13 Inches
Width: 23.13 Inches
Depth: 7.18 Inches
Weight (lbs): 34
Color: Gray Venturi/Galvanized Spiral
Height: 23.13 Inches
Width: 23.13 Inches
Depth: 7.18 Inches
Weight (lbs): 34
MOTOR SPECIFICATIONS
- 120V, 1-Phase, totally enclosed, permanently lubricated.
- 1/4 HP motor is 2-Speed ball bearing permanent split capacitor.
- 1/4 HP motor is 2-Speed ball bearing permanent split capacitor.
