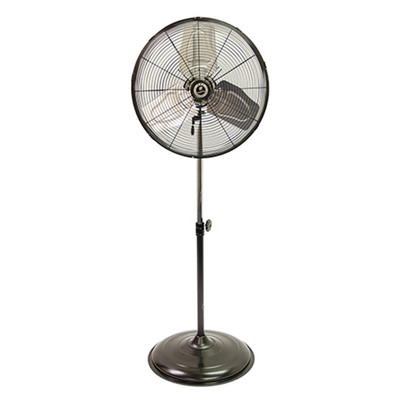

TPI CACU 30-P 30 Inch Commercial Air Circulator Pedestal Mount Features:
- These circulators should be used in clean and dry commercial applications - such as schools, shops, offices or warehouses.
- Motor, blades, guards, and mount are packed and shipped in a single UPS-able carton.
- Black semi-gloss powder coated finish.
- Pull chain switch.
- SJT type 3 conductor, 9’ long cord.
- Coated steel guards with retaining clips.
- Steel hub/spider aluminum paddle blades.
- Pole adjusts center of fan from 43” to 60”.
- Meets OSHA standards.
- 1 Year limited warranty.
- Stocked models may differ in appearance from photograph - sizes are nominal.
- Imported to TPI specifications.
- CFM measured 2 feet from face of fan.
SPECIFICATIONS
- Catalog Number: 08697402
- Model Number: CACU 30-P
- Agency Rating: C-UL-US
- Fan Style Type: Commercial Circulator
- Blade Size: 30
- Speeds: 3
- Velocity Profile CFM / Area Sq. Ft: 6700 / 240
- CFM Low: 3500
- CFM Med: 3800
- CFM High: 4200
- Voltage: 120
- Amp: 2.4
- Phase: 1
- Motor Volt: 120
- Motor Rating HP: 1/4
- Color: Black Finish
- Weight (lbs): 66
MOTOR SPECIFICATIONS
- 1-Phase
- 1/4 HP, 1/3 HP on HD Models
- Ball bearing
- Open ventilated
- 120V
- 2 or 3-Speed
- Permanently lubricated
- Permanent split capacitor
