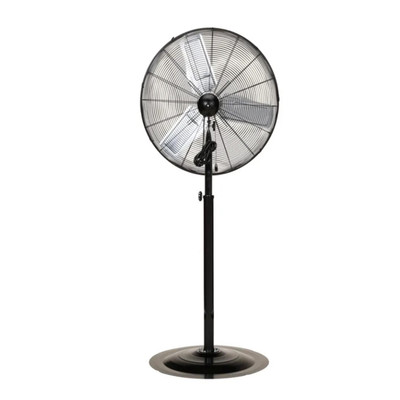

TPI CACU-20-P 24 Inch Commercial Air Circulator Pedestal Mount, 1780CFM 120V/1Ph

TPI CACU-20-P 24 Inch Commercial Air Circulator Pedestal Mount, 1780CFM 120V/1Ph

(No reviews yet) Write a Review
$244.48

322 In Stock, Usually Ships In 3-5 Business Days

Free ground shipping to the lower 48 states

Questions? Contact us
Product ID:
TPI-CACU-20-P
UPC:
686334877800
Weight:
52.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Tennessee - Factory Direct

Links To Product Literature:

TPI CACU 24-P Commercial Air Circulator Catalog
TPI CACU 20-P Brochure

choose options:

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description:

TPI CACU-20-P 24 Inch Commercial Air Circulator Pedestal Mount, 1780CFM 120V/1Ph:

- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.

TPI CACU-20-P 24 Inch Commercial Air Circulator Pedestal Mount Features:
- These circulators should be used in clean and dry commercial applications - such as schools, shops, offices or warehouses.
- Motor, blades, guards, and mount are packed and shipped in a single UPS-able carton.
- Black semi-gloss powder coated finish.
- Pull chain switch.
- SJT type 3 conductor, 9’ long cord.
- Coated steel guards with retaining clips.
- Steel hub/spider aluminum paddle blades.
- Pole adjusts center of fan from 43” to 60”.
- Meets OSHA standards.
- 1 Year limited warranty.
- Stocked models may differ in appearance from photograph - sizes are nominal.
- Imported to TPI specifications.
- CFM measured 2 feet from face of fan.

SPECIFICATIONS:
- Catalog Number: 08778002.
- Model Number: CACU 20-P.
- Agency Rating: C-UL-US.
- Fan Style Type: Commercial Circulator.
- Blade Size: 20.
- Speeds: 3.
- Velocity Profile CFM / Area Sq. Ft: 3300 / 125.
- CFM Low: 1420.
- CFM Med: 1600.
- CFM High: 1780.
- Voltage: 120.
- Amp: 1.4.
- Phase: 1.
- Motor Volt: 120.
- Motor Rating HP: 1/10.
- Color: Black Finish.
- Weight (lbs): 52.

MOTOR SPECIFICATIONS:
- 1-Phase.
- 1/4 HP, 1/3 HP on HD Models.
- Ball bearing.
- Open ventilated.
- 120V.
- 2 or 3-Speed.
- Permanently lubricated.
- Permanent split capacitor.
